DGC/GC Series
M3
M5
M100
M1 M5 M3

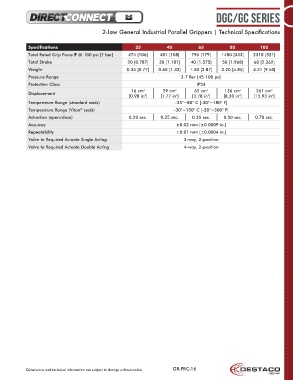

2-Jaw General Industrial Parallel Grippers | Technical Specifications
Specifications 25 45 65 85 105
Total Rated Grip Force F @ 100 psi [7 bar] 474 [106] 481 [108] 796 [179] 1480 [333] 2318 [521]
Total Stroke 20 [0.787] 30 [1.181] 40 [1.575] 50 [1.968] 60 [2.362]
Weight 0.35 [0.77] 0.60 [1.32] 1.30 [2.87] 2.20 [4.85] 4.31 [9.50]
Pressure Range 3-7 Bar [45-100 psi]
Protection Class IP54
16 cm 29 cm 62 cm 136 cm 261 cm
3
3
3
3
3
Displacement
[0.98 in ] [1.77 in ] [3.78 in ] [8.30 in ] [15.93 in ]
3
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
Temperature Range (Viton seals) -30°~150° C [-20°~300° F]
®
Actuation (open/close) 0.20 sec. 0.25 sec. 0.35 sec. 0.50 sec. 0.70 sec.
Accuracy ±0.02 mm [±0.0009 in.]
Repeatability ±0.01 mm [±0.0004 in.]
Valve to Required Actuate Single Acting 3-way, 2-position
Valve to Required Actuate Double Acting 4-way, 2-position

Dimensions and technical information are subject to change without notice GR-PRC-16
