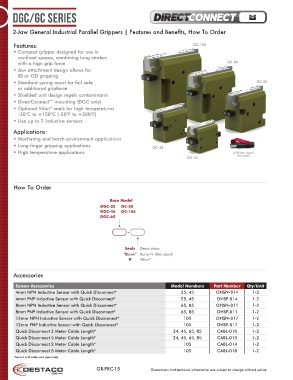

DGC/GC Series M1 M5 M3
M100
M5
M3
2-Jaw General Industrial Parallel Grippers | Features and Benefits, How To Order
Features: GC-105
• Compact gripper designed for use in
confined spaces, combining long strokes
with a high grip force GC-85
• Jaw attachment design allows for
ID or OD gripping RPS-17
• Standard spring assist for fail-safe GC-65
or additional gripforce
• Shielded unit design repels contaminants
• DirectConnect™ mounting (DGC only)
• Optional Viton seals for high temperatures
®
-30°C to +150°C [-20°F to +300°F]
• Use up to 2 inductive sensors
Applications:
• Machining and harsh environment applications
• Long finger gripping applications GC-45
• High temperature applications (USB key shown
GC-25 for scale)
How To Order
Base Model
DGC-25 GC-85
DGC-45 GC-105
DGC-65

-

Seals Description
“Blank” Buna-N (Standard)
V Viton ®

Accessories

Sensor Accessories Model Numbers Part Number Qty/Unit
4mm NPN Inductive Sensor with Quick Disconnect* 25, 45 OHSN-014 1-2
4mm PNP Inductive Sensor with Quick Disconnect* 25, 45 OHSP-014 1-2
8mm NPN Inductive Sensor with Quick Disconnect* 65, 85 OHSN-011 1-2
8mm PNP Inductive Sensor with Quick Disconnect* 65, 85 OHSP-011 1-2
12mm NPN Inductive Sensor with Quick Disconnect* 105 OHSN-017 1-2
12mm PNP Inductive Sensor with Quick Disconnect* 105 OHSP-017 1-2
Quick Disconnect 2 Meter Cable Length* 24, 45, 65, 85 CABL-010 1-2
Quick Disconnect 5 Meter Cable Length* 24, 45, 65, 85 CABL-013 1-2
Quick Disconnect 2 Meter Cable Length* 105 CABL-014 1-2
Quick Disconnect 5 Meter Cable Length* 105 CABL-018 1-2
*Sensor and cable sold separately.
GR-PRC-15 Dimensions and technical information are subject to change without notice
