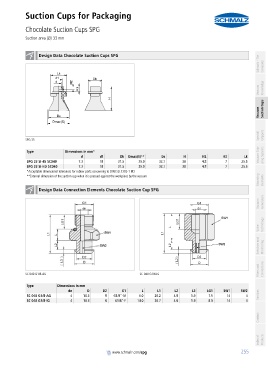

Suction Cups for Packaging
Chocolate Suction Cups SPG
PA01019111_inh_EN.pdf Suction area (Ø) 33 mm PA01019111_inh_EN.pdf

container

container Design Data Chocolate Suction Cups SPG Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SPG 33

container
Type Dimensions in mm*
d d1 Dk Dmax(S)** Ds H H2 H3 Lk Vacuum Grip- ping Systems
SPG 33 SI-45 SC040 7.3 11 21.5 35.0 32.1 38 4.8 7 25.5
SPG 33 SI-HD SC040 7.3 11 21.5 35.0 32.1 38 4.8 7 25.5
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
Mounting Elements
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
container
Design Data Connection Elements Chocolate Suction Cup SPG
Vacuum Generators
container

Valve Technology

Switches and Monitoring

Filters and Connections

SC 040 G1/8-AG SC 040 G1/8-IG

container
Type Dimensions in mm
dn D D2 G1 L L1 L2 L3 LG1 SW1 SW2
SC 040 G1/8-AG 4 10.3 8 G1/8"-M 6.0 20.2 4.8 1.9 7.5 14 4 Services
SC 040 G1/8-IG 4 10.3 8 G1/8"-F 14.0 20.7 4.8 1.9 8.0 14 4
