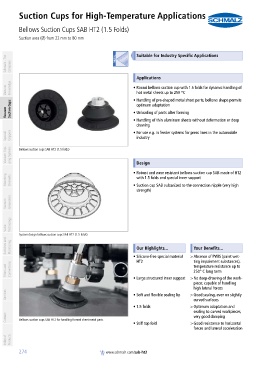

Suction Cups for High-Temperature Applications
Bellows Suction Cups SAB HT2 (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 22 mm to 80 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round bellows suction cup with 1.5 folds for dynamic handling of
hot metal sheets up to 250 °C
• Handling of pre-shaped metal sheet parts, bellows shape permits
optimum adaptation
Vacuum Suction Cups • Unloading of parts after forming

• Handling of thin aluminum sheets without deformation or deep
drawing
Special Grippers • For use e.g. in feeder systems for press lines in the automobile
industry

Vacuum Grip- ping Systems Bellows suction cups SAB HT2 (1.5 folds) Design

container

• Robust and wear resistant bellows suction cup SAB made of HT2
Mounting Elements with 1.5 folds and special inner support
• Suction cup SAB vulcanized to the connection nipple (very high
strength)
Vacuum Generators

Valve Technology

System design bellows suction cups SAB HT2 (1.5 folds)
Switches and Monitoring container Our Highlights... Your Benefits...

• Silicone-free special material >Absence of PWIS (paint wet-
HT2
ting impairment substances),
Filters and Connections temperature resistance up to
250° C long term
• Large structured inner support >No deep-drawing of the work-
piece; capable of handling
high lateral forces
Services • Soft and flexible sealing lip >Good sealing, even on slightly
curved surfaces
• 1.5 folds >Optimum adaptation and
sealing to curved workpieces,
Contact Bellows suction cups SAB HT2 for handling formed sheet metal parts very good damping

• Stiff top fold >Good resistance to horizontal
forces and lateral acceleration
Index of Products

274 www.schmalz.com/sab-ht2
