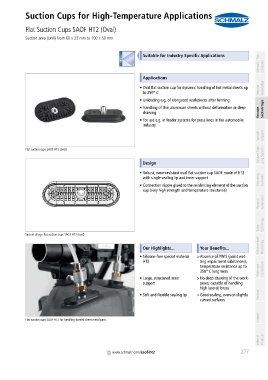

Suction Cups for High-Temperature Applications
Flat Suction Cups SAOF HT2 (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 23 mm to 100 x 50 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Oval flat suction cup for dynamic handling of hot metal sheets up Vacuum Knowledge
to 250° C
• Unloading e.g. of elongated workpieces after forming
• Handling of thin aluminum sheets without deformation or deep Suction Cups
drawing Vacuum
• For use e.g. in feeder systems for press lines in the automobile
industry
Special Grippers

Vacuum Grip- ping Systems
Flat suction cups SAOF HT2 (oval)
container
Design

• Robust, wear-resistant oval flat suction cup SAOF made of HT2
with single sealing lip and inner support Mounting Elements
• Connection nipple glued to the reinforcing element of the suction
cup (very high strength and temperature resistance)
Vacuum Generators

Valve Technology

System design flat suction cups SAOF HT2 (oval)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Silicone-free special material >Absence of PWIS (paint wet-
HT2 ting impairment substances),
temperature resistance up to
250° C long term Filters and Connections
• Large, structured inner >No deep-drawing of the work-
support piece; capable of handling
high lateral forces
• Soft and flexible sealing lip >Good sealing, even on slightly Services
curved surfaces

Contact
Flat suction cups SAOF HT2 for handling formed sheet metal parts

Index of Products

container
www.schmalz.com/saof-ht2
