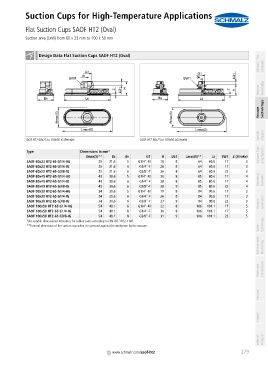

Suction Cups for High-Temperature Applications
Flat Suction Cups SAOF HT2 (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 23 mm to 100 x 50 mm PA01019111_inh_EN.pdf

container

container Design Data Flat Suction Cups SAOF HT2 (Oval) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SAOF HT2 60x23 to 100x50 IG (female) SAOF HT2 60x23 to 100x50 AG (male)

container
Type Dimensions in mm*
Bmax(S)** Bs dn G1 H LG1 Lmax(S)** Ls SW1 Z (Stroke) Vacuum Grip- ping Systems
SAOF 60x23 HT2-65 G1/4-AG 25 21.6 5 G1/4"-M 18 8 64 60.6 17 3
SAOF 60x23 HT2-65 G1/4-IG 25 21.6 6 G1/4"-F 26 8 64 60.6 17 3
SAOF 60x23 HT2-65 G3/8-IG 25 21.6 6 G3/8"-F 26 8 64 60.6 22 3
SAOF 80x40 HT2-65 G1/4-AG 43 38.6 5 G1/4"-M 20 8 85 80.6 17 4
SAOF 80x40 HT2-65 G1/4-IG 43 38.6 6 G1/4"-F 28 8 85 80.6 17 4 Mounting Elements
SAOF 80x40 HT2-65 G3/8-IG 43 38.6 6 G3/8"-F 28 9 85 80.6 22 4
SAOF 90x30 HT2-65 G1/4-AG 34 30.6 5 G1/4"-M 19 8 94 90.6 17 3
SAOF 90x30 HT2-65 G1/4-IG 34 30.6 6 G1/4"-F 26 8 94 90.6 17 3
SAOF 90x30 HT2-65 G3/8-IG 34 30.6 6 G3/8"-F 27 9 94 90.6 22 3 Vacuum Generators
SAOF 100x50 HT2-65 G1/4-AG 54 48.1 6 G1/4"-M 22 8 106 101.1 17 5
SAOF 100x50 HT2-65 G1/4-IG 54 48.1 8 G1/4"-F 30 8 106 101.1 17 5
SAOF 100x50 HT2-65 G3/8-IG 54 48.1 8 G3/8"-F 31 9 106 101.1 22 5
*Acceptable dimensional tolerances for rubber parts according to DIN ISO 3302-1 M3
Valve
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum Technology
