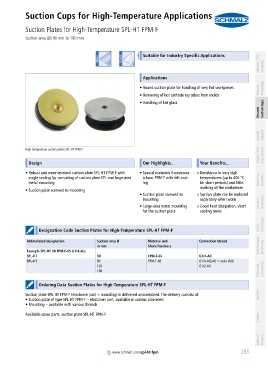

Suction Cups for High-Temperature Applications
Suction Plates for High-Temperature SPL-HT FPM-F
PA01019111_inh_EN.pdf Suction area (Ø) 90 mm to 190 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round suction plate for handling of very hot workpieces Vacuum Knowledge
• Removing of hot cathode ray tubes from molds
• Handling of hot glass
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems
High-temperature suction plates SPL-HT FPM-F
container
Design Our Highlights... Your Benefits...

• Robust and wear-resistant suction plate SPL-HT FPM-F with • Special materials fluorocaou- >Resistance to very high
single sealing lip, consisting of suction plate SPL and large-area tchouc FPM-F with felt coat- temperatures (up to 400 °C Mounting
metal mounting ing for short periods) and little Elements
marking of the workpieces
• Suction plate screwed to mounting
• Suction plate screwed to >Suction plate can be replaced
mounting separately when worn Generators
• Large-area metal mounting >Good heat dissipation, short Vacuum
for the suction plate cooling times

container Valve Technology
Designation Code Suction Plates for High-Temperature SPL-HT FPM-F
container
Abbreviated designation Suction area Ø Material and Connection thread
in mm Shore hardness Switches and Monitoring
Example SPL-HT 90 FPM-F-65 G1/4-AG:
SPL-HT 90 FPM-F-65 G1/4-AG
SPL-HT 90 FPM-F-65 G1/4-AG(AG = male (M))
Filters and Connections
120 G1/2-AG
190

container
Ordering Data Suction Plates for High-Temperature SPL-HT FPM-F

Suction plate SPL-HT FPM-F (elastomer part + mounting) is delivered unassembled. The delivery consists of: Services
container
• Suction plate of type SPL-HT FPM-F – elastomer part, available in various diameters
• Mounting – available with various threads

Available spare parts: suction plate SPL-HT FPM-F
Contact

Index of Products

container
www.schmalz.com/spl-ht-fpm
