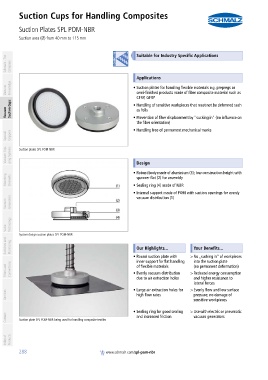

Suction Cups for Handling Composites
Suction Plates SPL POM-NBR
PA01019111_inh_EN.pdf Suction area (Ø) from 40 mm to 115 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Suction plates for handling flexible materials e.g. prepregs or
semi-finished products made of fiber composite material such as
CFRP, GFRP

Vacuum Suction Cups • Handling of sensitive workpieces that must not be deformed such
as foils
• Prevention of fiber displacement by "sucking in" (no influence on
the fiber orientation)

Special Grippers • Handling free of permanent mechanical marks

Vacuum Grip- ping Systems Suction plates SPL POM-NBR Design

container

• Robust body made of aluminium (3); low construction height with
Mounting Elements • Sealing ring (4) made of NBR
spanner flat (2) for assembly

• Internal support made of POM with suction openings for evenly
vacuum distribution (1)
Vacuum Generators

Valve Technology

System design suction plates SPL POM-NBR
Switches and Monitoring container Our Highlights... Your Benefits...

• Round suction plate with >No „sucking in“ of workpieces
into the suction plate
inner support for flat handling
Filters and Connections • Evenly vacuum distribution >Reduced energy consumption
of flexible materials
(no permanent deformation)
due to air extraction holes and higher resistance to
lateral forces

Services • Large air extraction holes for >Evenly flow and low surface
high flow rates
pressure; no damage of
sensitive workpieces
• Sealing ring for good sealing >Use with electric or pneumatic
Contact Suction plate SPL POM-NBR being used for handling composite textiles and increased friction vacuum generators

Index of Products

288 www.schmalz.com/spl-pom-nbr
