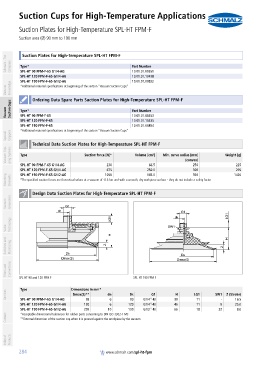

Suction Cups for High-Temperature Applications
Suction Plates for High-Temperature SPL-HT FPM-F
PA01019111_inh_EN.pdf Suction area (Ø) 90 mm to 190 mm PA01019111_inh_EN.pdf

container
Suction Plates for High-Temperature SPL-HT FPM-F
Schmalz - The Company container Type* Part Number

SPL-HT 90 FPM-F-65 G1/4-AG
SPL-HT 120 FPM-F-65 G1/4-AG 10.01.01.00551
10.01.01.13438
10.01.01.00832
SPL-HT 190 FPM-F-65 G1/2-AG
Vacuum Knowledge *Additional material specifications at beginning of the section "Vacuum Suction Cups"
container Ordering Data Spare Parts Suction Plates for High-Temperature SPL-HT FPM-F

Vacuum Suction Cups container Type* Part Number
10.01.01.00553
SPL-HT 90 FPM-F-65
SPL-HT 120 FPM-F-65 10.01.01.13435
SPL-HT 190 FPM-F-65 10.01.01.00834
*Additional material specifications at beginning of the section "Vacuum Suction Cups"
Special Grippers
container
Technical Data Suction Plates for High-Temperature SPL-HT FPM-F
Vacuum Grip- ping Systems container Type Suction force [N]* Volume [cm³] Min. curve radius [mm] Weight [g]

(convex)
SPL-HT 90 FPM-F-65 G1/4-AG 230 66.5 250 225
SPL-HT 120 FPM-F-65 G1/4-AG 675 250.0 300 295
Mounting Elements SPL-HT 190 FPM-F-65 G1/2-AG 1050 165.0 350 1420
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor

container
Design Data Suction Plates for High-Temperature SPL-HT FPM-F
Vacuum Generators container

Valve Technology

Switches and Monitoring

Filters and Connections

SPL-HT 90 and 120 FPM-F SPL-HT 190 FPM-F

container Type Dimensions in mm*
Services SPL-HT 90 FPM-F-65 G1/4-AG Dmax(S)** dn 6 Ds G1/4"-M 39 LG1 SW1 - Z (Stroke)
H
G1
98
90
11
16.5
SPL-HT 120 FPM-F-65 G1/4-AG 130 6 120 G1/4"-M 46 11 8 25.0
SPL-HT 190 FPM-F-65 G1/2-AG 209 10 190 G1/2"-M 66 18 32 8.0
Contact *Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
Index of Products

284 www.schmalz.com/spl-ht-fpm
