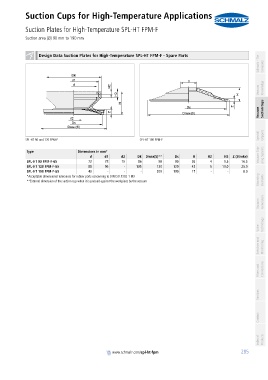

Suction Cups for High-Temperature Applications
Suction Plates for High-Temperature SPL-HT FPM-F
PA01019111_inh_EN.pdf Suction area (Ø) 90 mm to 190 mm PA01019111_inh_EN.pdf

container

container Design Data Suction Plates for High-Temperature SPL-HT FPM-F - Spare Parts Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SPL-HT 90 and 120 FPM-F SPL-HT 190 FPM-F

container
Type Dimensions in mm*
d d1 d2 Dk Dmax(S)** Ds H H2 H3 Z (Stroke) Vacuum Grip- ping Systems
SPL-HT 90 FPM-F-65 72 78 15 86 98 90 36 4 9.5 16.5
SPL-HT 120 FPM-F-65 88 96 - 105 130 120 43 5 10.0 25.0
SPL-HT 190 FPM-F-65 40 - - - 209 190 17 - - 8.0
Mounting
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum Elements
