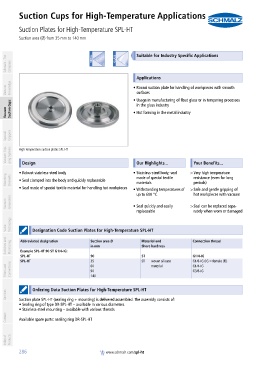

               Suction Cups for High-Temperature Applications
               Suction Plates for High-Temperature SPL-HT
     PA01019111_inh_EN.pdf  Suction area (Ø) from 35 mm to 140 mm                                                                PA01019111_inh_EN.pdf




               container
         Schmalz - The   Company                                   Suitable for Industry Specific Applications



               container
                                                                   Applications
         Vacuum   Knowledge                                       • Round suction plate for handling of workpieces with smooth
                                                                   surfaces
                                                                  • Usage in manufacturing of float glass or in tempering processes
                                                                   in the glass industry
         Vacuum   Suction Cups                                    • Hot forming in the metal industry





         Special   Grippers


         Vacuum Grip-  ping Systems  High-temperature suction plates SPL-HT  Our Highlights...  Your Benefits...

               container
                 Design

               • Robust stainless-steel body                      • Stainless-steel body; seal   >Very high temperature
         Mounting   Elements  • Seal clamped into the body and quickly replaceable  made of special textile   resistance (even for long
                                                                                             periods)
                                                                   materials
               • Seal made of special textile material for handling hot workpieces  • Withstanding temperatures of   >Safe and gentle gripping of
                                                                   up to 600 °C              hot workpieces with vacuum
         Vacuum   Generators                                      • Seal quickly and easily   >Seal can be replaced sepa-

                                                                   replaceable               rately when worn or damaged


         Valve   Technology  container  Designation Code Suction Plates for High-Temperature SPL-HT


         Switches and   Monitoring  container Abbreviated designation  Suction area Ø   Material and   Connection thread
                                                                      Shore hardness
                                               in mm
                Example SPL-HT 90 ST G1/4-IG:
                SPL-HT                         90                     ST  woven silicate    G1/4-IG
                                                                                            G1/8-IG (IG = female (F))
                                               35
                SPL-HT
                                                                      ST
         Filters and   Connections             60                         material          G1/4-IG
                                                                                            G3/8-IG
                                               90
                                               140
               container  Ordering Data Suction Plates for High-Temperature SPL-HT
         Services  Suction plate SPL-HT (sealing ring + mounting) is delivered assembled. The assembly consists of:
               container
               • Sealing ring of type DR-SPL-HT – available in various diameters
               • Stainless-steel mounting – available with various threads
         Contact    Available spare parts: sealing ring DR-SPL-HT




         Index of   Products


               286                                    www.schmalz.com/spl-ht
