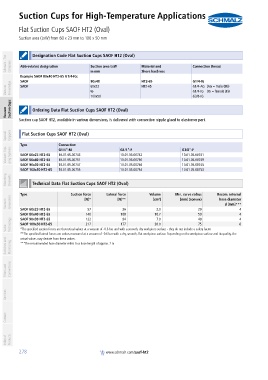

Suction Cups for High-Temperature Applications
Flat Suction Cups SAOF HT2 (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 23 mm to 100 x 50 mm PA01019111_inh_EN.pdf

container
Designation Code Flat Suction Cups SAOF HT2 (Oval)
Schmalz - The Company container Abbreviated designation Suction area LxW Material and Connection thread

Example SAOF 80x40 HT2-65 G1/4-IG: in mm Shore hardness G1/4-IG
HT2-65
80x40
SAOF
Vacuum Knowledge SAOF 60x23 HT2-65 G1/4-AG (AG = male (M))
to
G1/4-IG (IG = female (F))
100x50 G3/8-IG
Vacuum Suction Cups container Ordering Data Flat Suction Cups SAOF HT2 (Oval)

Suction cup SAOF HT2, available in various dimensions, is delivered with connection nipple glued to elastomer part.
container

Special Grippers container Flat Suction Cups SAOF HT2 (Oval)

container
Type Connection G1/4"-F G3/8"-F
Vacuum Grip- ping Systems SAOF 60x23 HT2-65 10.01.05.00743 10.01.05.00742 10.01.05.00741
G1/4"-M
10.01.05.00750
10.01.05.00749
10.01.05.00751
SAOF 80x40 HT2-65
SAOF 90x30 HT2-65 10.01.05.00747 10.01.05.00746 10.01.05.00745
SAOF 100x50 HT2-65 10.01.05.00755 10.01.05.00754 10.01.05.00753
Mounting Elements container Technical Data Flat Suction Cups SAOF HT2 (Oval)

container
Type Suction force Lateral force Volume Min. curve radius Recom. internal
Vacuum Generators [N]* [N]** [cm³] [mm] (convex) hose diameter
d [mm]***
SAOF 60x23 HT2-65 57 36 3.0 20 4
SAOF 80x40 HT2-65 140 108 10.7 50 4 4
122
7.0
94
40
SAOF 90x30 HT2-65
Valve Technology SAOF 100x50 HT2-65 217 177 20.0 75 6
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
**The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the
Switches and Monitoring ***The recommended hose diameter refers to a hose length of approx. 2 m
actual values may deviate from these values.

Filters and Connections

Services

Contact

Index of Products

278 www.schmalz.com/saof-ht2
