Page 13 - Destaco - SpiderGrip Geometric End Effector System
P. 13

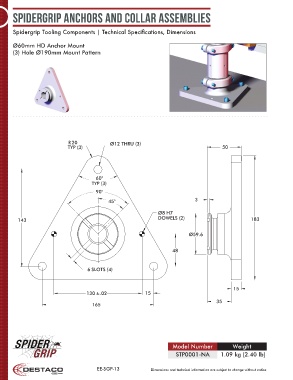

SpiderGrip Anchors and Collar Assemblies
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm HD Anchor Mount
(3) Hole Ø190mm Mount Pattern
R 20 Ø12 THRU (3)
TYP (3) 50
60°
TYP (3)
90°
45° 3
Ø8 H7
143 DOWELS (2) 183
Ø59.6
48
6 SLOTS (4)
15
130±.02 15
35
165
Model Number Weight
STP0001-NA 1.09 kg [2.40 lb]
EE-SGP-13 Dimensions and technical information are subject to change without notice
