Page 10 - Destaco - SpiderGrip Geometric End Effector System
P. 10

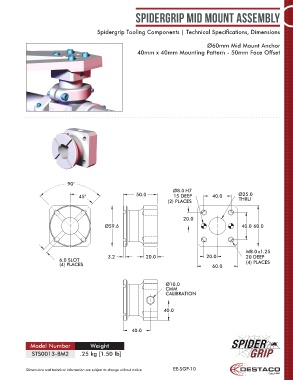

SpiderGrip Mid Mount Assembly
Ø60mm Mid Mount Anchor
40mm x 40mm Mounting Pattern - 50mm Face Offset
SpiderGrip Mid Mount Assembly
Spidergrip Tooling Components | Technical Specifications, Dimensions
Ø60mm Mid Mount Anchor
40mm x 40mm Mounting Pattern - 50mm Face Offset
90°
Ø8.0 H7
45° 50.0 15 DEEP 40.0 Ø25.0
THRU
(2) PLACES
20.0
Ø59.6 40.0 60.0
M8.0 x1.25
3.2 20.0 20.0 20 DEEP
6.0 SLOT (4) PLACES
(4) PLACES 60.0
Ø10.0
CMM
CALIBRATION
40.0
40.0
Model Number Weight
STS0013-BM2 .25 kg [1.50 lb]
Dimensions and technical information are subject to change without notice EE-SGP-10
