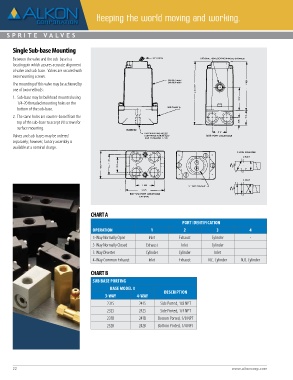

S P R I TE V A L V ES

Single Sub-base Mounting

Between the valve and the sub-base is a
locating pin which assures accurate alignment
of valve and sub-base. Valves are secured with
two mounting screws.
The mounting of this valve may be achieved by
one of two methods:
1. Sub-base may be bulkhead mounted using
1/4-20 threaded mounting holes on the
bottom of the sub-base.
2. The same holes are counter-bored from the
top of the sub-base to accept #8 screws for
surface mounting.
Valves and sub-bases may be ordered
separately; however, factory assembly is
available at a nominal charge.

CHART A
PORT IDENTIFICATION
OPERATION 1 2 3 4
3-Way Normally Open Inlet Exhaust Cylinder -
3-Way Normally Closed Exhaust Inlet Cylinder
3-Way Diverter Cylinder Cylinder Inlet -
4-Way Common Exhaust Inlet Exhaust N.C. Cylinder N.O. Cylinder

CHART B

SUB BASE PORTING
BASE MODEL #
DESCRIPTION
3-WAY 4-WAY
231S 241S Side Ported, 1/8 NPT
232S 242S Side Ported, 1/4 NPT
231B 241B Bottom Ported, 1/8 NPT
232B 242B Bottom Ported, 1/4 NPT
