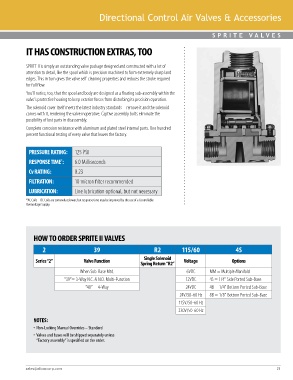

Directional Control Air Valves & Accessories

S P R I TE V A L V ES

IT HAS CONSTRUCTION EXTRAS, TOO

SPRITE II is simply an outstanding valve package designed and constructed with a lot of
attention to detail, like the spool which is precision machined to form extremely sharp land
edges. This in turn gives the valve self-cleaning properties and reduces the stroke required
for full flow.

You’ll notice, too, that the spool and body are designed as a floating sub-assembly within the
valve’s protective housing to keep exterior forces from disturbing its precision operation.
The solenoid cover itself meets the latest industry standards – remove it and the solenoid
comes with it, rendering the valve inoperative. Captive assembly bolts eliminate the
possibility of lost parts in disassembly.

Complete corrosion resistance with aluminum and plated steel internal parts. One hundred
percent functional testing of every valve that leaves the factory.

PRESSURE RATING: 125 PSI
RESPONSE TIME : 6.0 Milliseconds
*
Cv RATING: 0.23
FILTRATION: 10 micron filter recommended

LUBRICATION: Line lubrication optional, but not necessary

*AC Coils – DC Coils are somewhat slower, but response time may be improved by the use of a Controllable
Overvoltage Supply.

HOW TO ORDER SPRITE II VALVES

2 39 R2 115/60 4S

Single Solenoid
Series “2” Valve Function Voltage Options
Spring Return “R2”
When Sub-Base Mtd. 6VDC MM = Multiple Manifold
“39”= 3-Way N.C. & N.O. Multi-Function 12VDC 4S = 1/4” Side Ported Sub-Base
“40” = 4-Way 24VDC 4B = 1/4” Bottom Ported Sub-Base
24V/50-60 Hz 8B = 1/8” Bottom Ported Sub-Base
115V/50-60 Hz
230V/50-60 Hz

NOTES:
• Non-Locking Manual Overrides – Standard
• Valves and bases will be shipped separately unless
“Factory assembly” is specified on the order.
