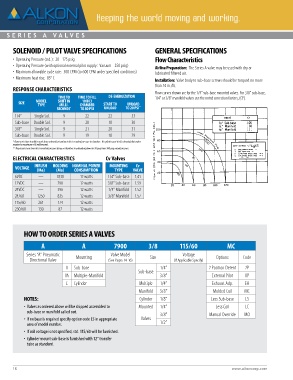

S E R I ES A V A L V ES

SOLENOID / PILOT VALVE SPECIFICATIONS GENERAL SPECIFICATIONS

• Operating Pressure (std.): 20 - 175 psig Flow Characteristics
• Operating Pressure (with optional external pilot supply: Vacuum - 250 psig) Airline Preparation: The Series A valve may be used with dry or
• Maximum allowable cycle rate: 300 CPM (to 600 CPM under specified conditions) lubricated filtered air.
• Maximum heat rise: 85° C
Installation: Valve body to sub-base screws should be torqued no more
than 24 in./lb.
RESPONSE CHARACTERISTICS
Flow curves shown are for the 1/4” sub-base mounted valves. For 3/8” sub-base,
TIME TO TIME TO FILL DE-ENERGIZATION 1/4” or 3/8” manifold valves use the noted correction factors, (CF).
10 IN 3
SIZE MODEL SHIFT IN CHAMBER START TO UNLOAD
MILLI-
TYPE
SECONDS * TO 80 PSI UNLOAD TO 20 PSI **
1/4” Single Sol. 9 22 22 33
Sub-base Double Sol. 9 20 10 30
3/8” Single Sol. 9 21 20 31
Sub-base Double Sol. 9 19 10 29
* Represents time in milliseconds from solenoid actuation to first recorded pressure in chamber. At cylinder port itself, solenoid pilot valves
required a maximum of 8 milliseconds.
** Represents time from first recorded pressure decay in chamber to unloading down to 20 psig from 100 psig initial pressure.
ELECTRICAL CHARACTERISTICS Cv Valves

VOLTAGE INRUSH HOLDING NOMINAL POWER MOUNTING Cv
(Ma) (Ma) CONSUMPTION TYPE VALVE
6VDC — 1830 12 watts 1/4” Sub-base 1.41
12VDC — 790 12 watts 3/8” Sub-base 1.59
24VDC — 396 12 watts 1/4” Manifold 1.52
24/60 1250 835 12 watts 3/8” Manifold 1.57
115/60 261 174 12 watts
230/60 130 87 12 watts

HOW TO ORDER SERIES A VALVES

A A 7900 3/8 115/60 MC

Series “A” Pneumatic Valve Model Voltage
Directional Valve Mounting (See Pages 14-16) Size (If Applicable Specify) Options Code
A Sub-base 1/4” 2 Position Detent 2P
Sub-base
M Multiple-Manifold 3/8” External Pilot XP
C Cylinder Multiple 1/4” Exhaust Adp. EA
Manifold 3/8” Molded Coil MC
NOTES: Cylinder 1/8” Less Sub-base LS
• Valves as ordered above will be shipped assembled to Mounted 1/4” Less Coil LC
sub-base or manifold called out. 3/8” Manual Override MO
• If no base is required specify option code LS in appropriate Valves
area of model number. 1/2”
• If coil voltage is not specified, std. 115/60 will be furnished.
• Cylinder mount sub-base is furnished with 12” transfer
tube as standard.
