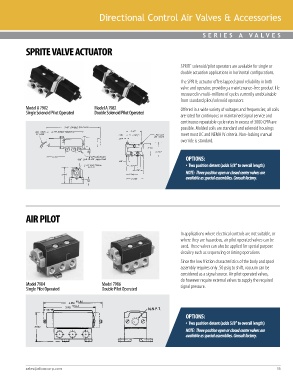

Directional Control Air Valves & Accessories

S E R I ES A V A L V ES

SPRITE VALVE ACTUATOR

SPRITE solenoid/pilot operators are available for single or
double actuation applications in horizontal configurations.
The SPRITE actuator offers lapped spool reliability in both
valve and operator, providing a maintenance-free product life
measured in multi-millions of cycles currently unobtainable
from standard pilot/solenoid operators.
Model A 7902 Model A 7982 Offered in a wide variety of voltages and frequencies; all coils
Single Solenoid Pilot Operated Double Solenoid Pilot Operated
are rated for continuous or maintained signal service and
continuous repeatable cycle rates in excess of 3000 CPM are
possible. Molded coils are standard and solenoid housings
meet most JIC and NEMA IV criteria. Non-locking manual
override is standard.

OPTIONS:
• Two position detent (adds 5/8” to overall length)
NOTE: Three position open or closed center valves are
available as special assemblies. Consult factory.

AIR PILOT

In applications where electrical controls are not suitable, or
where they are hazardous, air pilot operated valves can be
used. These valves can also be applied for special purpose
circuitry such as sequencing or timing operations.
Since the low friction characteristics of the body and spool
assembly requires only .50 psig to shift, vacuum can be
considered as a signal source. Air pilot operated valves,
do however require external valves to supply the required
Model 7984 Model 7986 signal pressure.
Single Pilot Operated Double Pilot Operated

OPTIONS:
• Two position detent (adds 5/8” to overall length)
NOTE: Three position open or closed center valves are
available as special assemblies. Consult factory.
