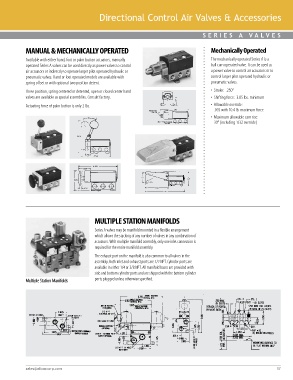

Directional Control Air Valves & Accessories

S E R I ES A V A L V ES

MANUAL & MECHANICALLY OPERATED Mechanically Operated

Available with either hand, foot or palm button actuators, manually The mechanically operated Series A is a
operated Series A valves can be used directly as power valves to control ball cam operated valve. It can be used as
air actuators or indirectly to operate larger pilot operated hydraulic or a power valve to control air actuators or to
pneumatic valves. Hand or foot operated models are available with control larger pilot operated hydraulic or
spring offset or with optional two position detent. pneumatic valves.
Three position, spring centered or detented, open or closed center hand • Stroke: .250”
valves are available as special assemblies. Consult factory. • Shifting force: 3.85 lbs. minimum
Actuating force of palm button is only 2 lbs. • Allowable override:
.093 with 10.4 lb. maximum force
• Maximum allowable cam rise:
30° (including 1/32 override)

MULTIPLE STATION MANIFOLDS

Series A valves may be manifold mounted in a flexible arrangement
which allows the stacking of any number of valves in any combination of
actuators. With multiple manifold assembly, only one inlet connection is
required for the entire manifold assembly.
The exhaust port on the manifold is also common to all valves in the
assembly. Both inlet and exhaust ports are 1/2 NPT. Cylinder ports are
available in either 1/4 or 3/8 NPT. All manifold bases are provided with
side and bottom cylinder ports and are shipped with the bottom cylinder
Multiple Station Manifolds ports plugged unless otherwise specified.
