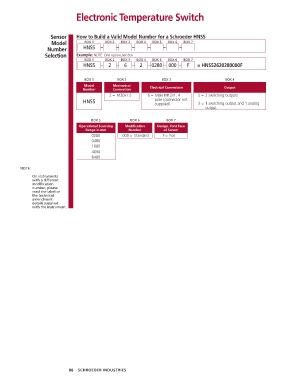

Electronic Temperature Switch

Sensor How to Build a Valid Model Number for a Schroeder HNS5
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
Number HNS5 – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
HNS5 – 2 – 6 – 2 – 0280 – 000 – F = HNS52620280000F

BOX 1 BOX 2 BOX 3 BOX 4
Model Mechanical
Number Connection Electrical Connection Output
2 = M30x1.5 6 = Male M12x1, 4 2 = 2 switching outputs
HNS5 pole (connector not
supplied) 3 = 1 switching output and 1 analog
output

BOX 5 BOX 6 BOX 7
Operational Scanning Modification Design, Font Face
Range in mm Number of Sensor
0280 000 = Standard F = Foil
0480
1600
4000
6400

NOTE:
On instruments
with a different
modification
number, please
read the label or
the technical
amendment
details supplied
with the instrument.

88 SCHROEDER INDUSTRIES
