P. 334
PDE2600PNUK

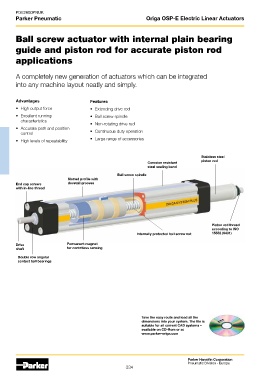

Parker Pneumatic Origa OSP-E Electric Linear Actuators
Ball screw actuator with internal plain bearing
guide and piston rod for accurate piston rod
applications
A completely new generation of actuators which can be integrated
into any machine layout neatly and simply.
Advantages Features
• High output force • Extending drive rod
• Excellent running • Ball screw spindle
characteristics
• Non-rotating drive rod
• Accurate path and position
control • Continuous duty operation
• High levels of repeatability • Large range of accessories
Stainless steel
piston rod
Corosion resistant
steel sealing band
Ball screw spindle
Slotted profile with
End cap screws dovetail grooves
with in-line thread
Piston rod thread
according to ISO
Internally protected ball screw nut 15552 (6431)
Drive Permanent magnet
shaft for contctless sensing
Double row angular
contact ball bearings
Take the easy route and load all the
dimensions into your system. The file is
suitable for all current CAD systems –
available on CD-Rom or at
www.parker-origa.com
Parker Hannifin Corporation
Pneumatic Division - Europe
334
