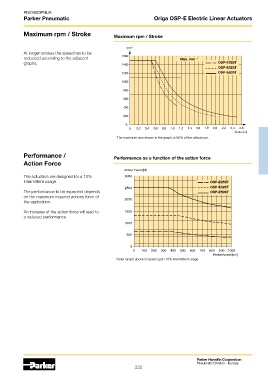

PDE2600PNUK
Parker Pneumatic Origa OSP-E Electric Linear Actuators

Maximum rpm / Stroke Maximum rpm / Stroke

rpm -1
At longer strokes the speed has to be
redueced according to the adjacent Max. min -1
graphs. OSP-E25ST

OSP-E32ST

OSP-E50ST

Stroke [m]
The maximum rpm shown in the graph, is 80% of the critical rpm.

Performance / Performance as a function of the action force
Action Force

Action Force [N]
The actuators are designed for a 10%
intermittent usage. OSP-E25ST
OSP-E25ST
OSP-E32ST
OSP-E32ST
OSP-E50ST
The performance to be expected depends OSP-E50ST
on the maximum required actions force of
the application.
An increase of the action force will lead to
a reduced performance.

Performance [km]
Note: Graph above is based upon 10% intermittent usage

Parker Hannifin Corporation
Pneumatic Division - Europe
333
