PDE2600PNUK

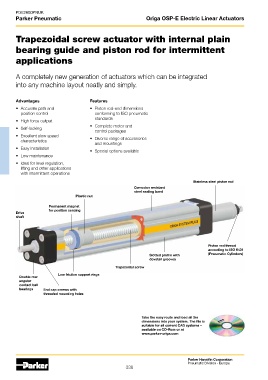

Parker Pneumatic Origa OSP-E Electric Linear Actuators

Trapezoidal screw actuator with internal plain

bearing guide and piston rod for intermittent

applications

A completely new generation of actuators which can be integrated
into any machine layout neatly and simply.

Advantages Features
• Accurate path and • Piston rod-end dimensions
position control conforming to ISO pneumatic
standards
• High force output
• Complete motor and
• Self-locking
control packages
• Excellent slow speed
characteristics • Diverse range of accessories
and mountings
• Easy installation
• Special options available
• Low maintenance
• Ideal for level regulation,
lifting and other applications
with intermittent operations

Stainless steel piston rod
Corrosion resistant
steel sealing band
Plastic nut
Permanent magnet
for position sensing
Drive
shaft

Piston rod thread
according to ISO 6431
Slotted profile with (Pneumatic Cylinders)
dovetail grooves
Trapezoidal screw

Low friction support rings
Double row
angular
contact ball
bearings End cap screws with
threaded mounting holes

Take the easy route and load all the
dimensions into your system. The file is
suitable for all current CAD systems –
available on CD-Rom or at
www.parker-origa.com

Parker Hannifin Corporation
Pneumatic Division - Europe
338
