PDE2600PNUK
Parker Pneumatic Origa OSP-E Electric Linear Actuators

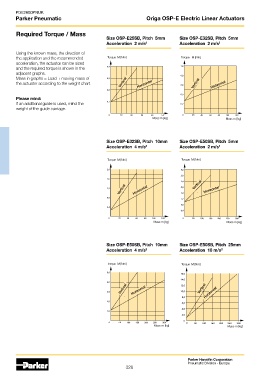

Required Torque / Mass
Size OSP-E25SB, Pitch 5mm Size OSP-E32SB, Pitch 5mm
Acceleration 2 m/s 2 Acceleration 2 m/s 2

Using the known mass, the direction of
the application and the recommended Torque M [Nm] Torque M [Nm]
acceleration, the actuator can be sized
and the required torque is shown in the 0,4 1,0
adjacent graphs.
Mass in graphs = Load + moving mass of 0,3 0,8
the actuator according to the weight chart. Vertical Horizontal 0,6 Vertical Horizontal

0,2
0,4
Please mind:
If an additional guide is used, mind the 0,1 0,2
weight of the guide carriage.

0 10 20 30 40 50 0 20 40 60 80 100 120
Mass m [kg] Mass m [kg]

Size OSP-E32SB, Pitch 10mm Size OSP-E50SB, Pitch 5mm
Acceleration 4 m/s 2 Acceleration 2 m/s 2

Torque M [Nm] Torque M [Nm]

2,0 3,2
2,8
1,6
2,4
Vertical Horizontal 1,6 Horizontal
1,2 2,0 Vertical
0,8
1,2
0,8
0,4
0,4
0 20 40 60 80 100 120 0 50 100 150 200 250 300
Mass m [kg] Mass m [kg]

Size OSP-E50SB, Pitch 10mm Size OSP-E50SB, Pitch 25mm
Acceleration 4 m/s 2 Acceleration 10 m/s 2

Torque M [Nm] Torque M [Nm]

5,0

4,0
Vertical Horizontal Vertical
3,0 Horizontal

2,0

1,0

0 50 100 150 200 250 300
Mass m [kg] Mass m [kg]
