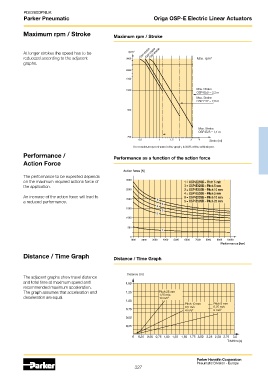

Parker Pneumatic Origa OSP-E Electric Linear Actuators

Maximum rpm / Stroke Maximum rpm / Stroke

At longer strokes the speed has to be rpm -1
redueced according to the adjacent Max. rpm -1
graphs.

Max. Stroke
OSP-E50 = 3,2 m
Max. Stroke
OSP-E32 = 2,0 m

Max. Stroke
OSP-E25 = 1,1 m

Stroke [m]
The maximum rpm shown in the graph, is 80% of the critical rpm.
Performance / Performance as a function of the action force
Action Force

Action force [N]
The performance to be expected depends
on the maximum required actions force of 1 = OSP-E25SB – Pitch 5 mm
the application. 3 = OSP-E32SB – Pitch 5 mm
2 = OSP-E32SB – Pitch 10 mm
4 = OSP-E50SB – Pitch 5 mm
An increase of the action force will lead to 6 = OSP-E50SB – Pitch 10 mm
a reduced performance. 5 = OSP-E50SB – Pitch 25 mm

Performance [km]

Distance / Time Graph Distance / Time Graph

Distance [m]
The adjacent graphs show travel distance
and total time at maximum speed and
recommended maximum acceleration.
The graph assumes that acceleration and Pitch 25 mm
deceleration are equal. 1,25 m/s
10 m/s
2

Pitch 10 mm Pitch 5 mm
0,5 m/s 0,25 m/s
4 m/s 2 2 m/s 2

Totaltime [s]
