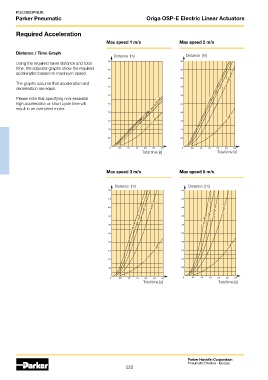

Parker Pneumatic Origa OSP-E Electric Linear Actuators
Required Acceleration
Max speed 1 m/s Max speed 2 m/s
Distance / Time Graph
Distance [m] Distance [m]
Using the required travel distance and total
time, the adjacent graphs show the required
acceleration based on maximum speed.
The graphs assume that acceleration and
deceleration are equal.
Please note that specifying non-essential
high acceleration or short cycle time will
result in an oversized motor.
Total time [s] Total time [s]
Max speed 3 m/s Max speed 5 m/s
Distance [m] Distance [m]
Total time [s] Total time [s]
