Parker Pneumatic Origa OSP-E Electric Linear Actuators

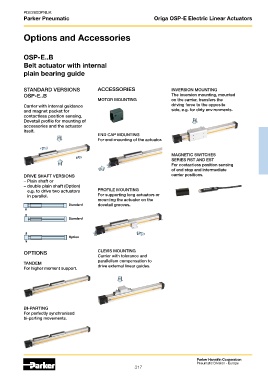

Options and Accessories

OSP-E..B
Belt actuator with internal
plain bearing guide

STANDARD VERSIONS ACCESSORIES INVERSION MOUNTING
OSP-E..B The inversion mounting, mounted
MOTOR MOUNTING on the carrier, transfers the
Carrier with internal guidance driving force to the opposite
and magnet packet for side, e.g. for dirty environments.
contactless position sensing.
Dovetail profile for mounting of
accessories and the actuator
itself.
END CAP MOUNTING
For end-mounting of the actuator.

MAGNETIC SWITCHES
SERIES RST AND EST
For contactless position sensing
of end stop and intermediate
DRIVE SHAFT VERSIONS carrier positions.
– Plain shaft or
– double plain shaft (Option)
e.g. to drive two actuators PROFILE MOUNTING
in parallel. For supporting long actuators or
mounting the actuator on the
Standard dovetail grooves.

Standard

Option

OPTIONS CLEVIS MOUNTING
Carrier with tolerance and
parallelism compensation to
TANDEM
For higher moment support. drive external linear guides.

BI-PARTING
For perfectly synchronised
bi-parting movements.
