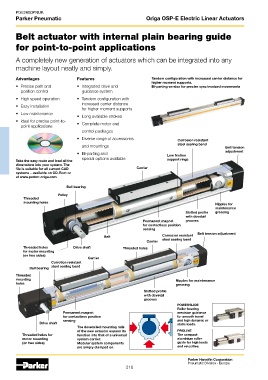

Page 318 - Parker - Parker Pneumatic

PDE2600PNUK
Parker Pneumatic Origa OSP-E Electric Linear Actuators

Belt actuator with internal plain bearing guide

for point-to-point applications

A completely new generation of actuators which can be integrated into any
machine layout neatly and simply.

Advantages Features Tandem configuration with increased carrier distance for
higher moment supports.
• Precise path and • Integrated drive and Bi-parting version for precise synchronized movements
position control guidance system

• High speed operation • Tandem configuration with
increased carrier distance
• Easy installation
for higher moment supports
• Low maintenance
• Long available strokes
• Ideal for precise point-to-
point applications • Complete motor and
control packages
• Diverse range of accessories Corrosion resistant
and mountings steel sealing band Belt tension
• Bi-parting and Low friction adjustment
special options available support rings
Take the easy route and load all the
dimensions into your system. The
file is suitable for all current CAD Carrier
systems – available on CD-Rom or
at www.parker-origa.com

Ball bearing
Pulley
Threaded
mounting holes Nipples for
maintenance
Slotted profile greasing
with dovetail
Permanent magnet grooves
for contactless position
sensing
Belt tension adjustment
Belt Corrosion resistant
Carrier steel sealing band
Threaded holes Drive shaft Threaded holes
for motor mounting
(on two sides)
Carrier
Corrotion resistant
Ball bearing steel sealing band
Threaded
mounting Nipples for maintenance
holes greasing
Slotted profile
with dovetail
grooves
POWERSLIDE
Roller bearing
Permanent magnet precision guidance
for contactless position for smooth travel
sensing and high dynamic or
Drive shaft static loads.
The dovetailed mounting rails
of the new actuator expand its PROLINE
Threaded holes for function into that of a universal The compact
motor mounting system carrier. aluminium roller
(on two sides) Modular system components guide for high loads
are simply clamped on. and velocities.

Parker Hannifin Corporation
Pneumatic Division - Europe
318
