PDE2600PNUK
Parker Pneumatic Origa OSP-E Electric Linear Actuators

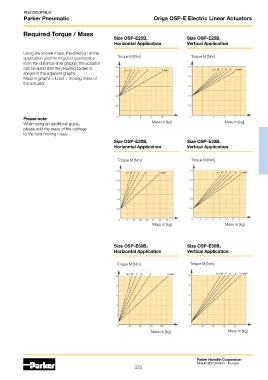

Required Torque / Mass
Size OSP-E25B, Size OSP-E25B,
Horizontal Application Vertical Application

Using the known mass, the direction of the
application and the required acceleration Torque M [Nm] Torque M [Nm]
from the distance-time graphs, the actuator
can be sized and the required torque is
shown in the adjacent graphs.
Mass in graphs = Load + moving mass of
the actuator.

Please note:
When using an additional guide, Mass m [kg] Mass m [kg]
please add the mass of the carriage
to the total moving mass.
Size OSP-E32B, Size OSP-E32B,
Horizontal Application Vertical Application

Torque M [Nm] Torque M [Nm]

Mass m [kg] Mass m [kg]

Size OSP-E50B, Size OSP-E50B,
Horizontal Application Vertical Application

Torque M [Nm] Torque M [Nm]

Mass m [kg] Mass m [kg]

Parker Hannifin Corporation
Pneumatic Division - Europe
323
