PDE2600PNUK

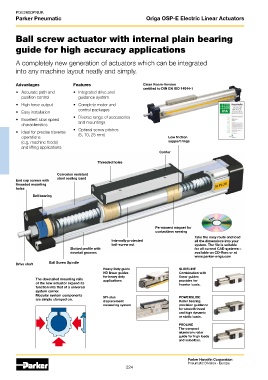

Parker Pneumatic Origa OSP-E Electric Linear Actuators

Ball screw actuator with internal plain bearing

guide for high accuracy applications

A completely new generation of actuators which can be integrated
into any machine layout neatly and simply.

Advantages Features Clean Room-Version
certified to DIN EN ISO 14644-1
• Accurate path and • Integrated drive and
position control guidance system
• High force output • Complete motor and
control packages
• Easy installation
• Diverse range of accessories
• Excellent slow speed
characteristics and mountings
• Optimal screw pitches
• Ideal for precise traverse
operations (5, 10, 25 mm) Low friction
(e.g. machine feeds) support rings
and lifting applications
Carrier
Threaded holes

Corrosion resistant
steel sealing band
End cap screws with
threaded mounting
holes
Ball bearing

Permanent magnet for
contactless sensing
Take the easy route and load
Internally protected all the dimensions into your
ball-screw nut system. The file is suitable
Slotted profile with for all current CAD systems –
dovetail grooves available on CD-Rom or at
www.parker-origa.com
Drive shaft Ball Screw Spindle
Heavy Duty guide SLIDELINE
HD linear guides Combination with
for heavy duty linear guides
The dovetailed mounting rails applications provides for
of the new actuator expand its heavier loads.
function into that of a universal
system carrier.
Modular system components
are simply clamped on. SFI-plus POWERSLIDE
Roller bearing
displacement
measuring system precision guidance
for smooth travel
and high dynamic
or static loads.
PROLINE
The compact
aluminium roller
guide for high loads
and velocities.

Parker Hannifin Corporation
Pneumatic Division - Europe
324
