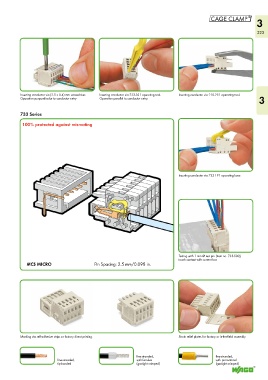

Page 225 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

" 3

223

Inserting conductor via (2.5 x 0.4) mm screwdriver. Inserting conductor via 233-331 operating tool. Inserting conductor via 210-251 operating tool.
Operation perpendicular to conductor entry Operation parallel to conductor entry. 3

733 Series

100% protected against mismating

Inserting conductor via 733-191 operating lever.

Testing with 1 mm Ø test pin (item no. 735-500),
touch contact with current bar.
MCS MICRO Pin Spacing: 2.5 mm/0.098 in.

Marking via self-adhesive strips or factory direct printing. Strain relief plates for factory or in-the-field assembly.

fine-stranded, fine-stranded,
fine-stranded, with ferrules with pin terminal
tip-bonded (gastight crimped) (gastight crimped)
