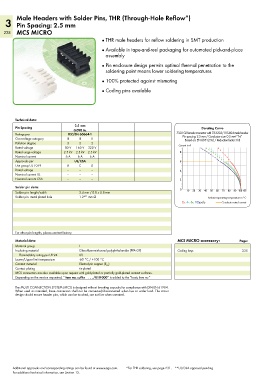

Male Headers with Solder Pins, THR (Through-Hole Reflow*)
3 Pin Spacing: 2.5 mm
228 MCS MICRO
● THR male headers for reflow soldering in SMT production

● Available in tape-and-reel packaging for automated pick-and-place
assembly

● Pin enclosure design permits optimal thermal penetration to the
soldering point means lower soldering temperatures
● 100% protected against mismating

● Coding pins available

Technical data:

Pin Spacing 2.5 mm Derating Curve
0.098 in.
Ratings per IEC/EN 60664-1 733-102 female connector with 733-332/105-604 male header
Pin spacing: 2.5 mm / Conductor size: 0.5 mm “f-st”
2
Overvoltage category III III II Based on: EN 60512-5-2 / Reduction factor: 0.8
Pollution degree 3 2 2 Current in A
Rated voltage 80 V 160 V 320 V
Rated surge voltage 2.5 kV 2.5 kV 2.5 kV 8
Nominal current 6 A 6 A 6 A
Approvals per UL/CSA 6
Use group UL 1059 B C D
Rated voltage – – – 4
Nominal current UL – – –
Nominal current CSA – – – 2
Solder pin data: 0
Solder pin: length/width 2.4 mm / 0.8 x 0.8 mm 10 20 30 40 50 60 70 80 90 100105
Solder pin: metal-plated hole 1.2 +0.1 mm Ø Ambient operating temperature in °C
2-, 4-, 6-, 12-pole Conductor rated current

For other pin lengths, please contact factory.
Material data: MCS MICRO accessory: Page:
Material group I
Insulating material Glass-fiber-reinforced polyphthalamide (PPA-GF) Coding keys 235
Flammability rating per UL 94 0V
Lower/Upper limit temperature -60 °C / +100 °C
Contact material Electrolytic copper (E )
Cu
Contact plating tin-plated
MCS connectors are also available upon request with gold-plated or partially gold-plated contact surfaces.
Depending on the version requested, “item no. suffix . . . /010-000” is added to the “basic item no.”

The MULTI CONNECTION SYSTEM (MCS) is designed without breaking capacity for compliance with DIN EN 61984.
When used as intended, these connectors shall not be connected/disconnected when live or under load. The circuit
design should ensure header pins, which can be touched, are not live when unmated.

Additional approvals and corresponding ratings can be found at www.wago.com. *For THR soldering, see page 231. **UL/CSA approval pending
For additional technical information, see Section 13.
