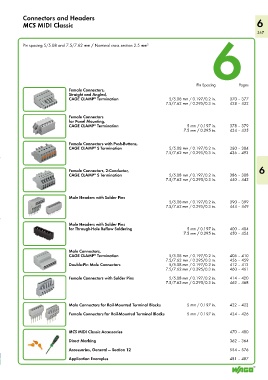

Page 369 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Connectors and Headers
MCS MIDI Classic 6
6
367

Pin spacing 5/5.08 and 7.5/7.62 mm / Nominal cross section 2.5 mm 2

Pin Spacing Pages
Female Connectors,
Straight and Angled,
®
CAGE CLAMP Termination 5/5.08 mm / 0.197/0.2 in. 370 – 377
7.5/7.62 mm / 0.295/0.3 in. 428 – 432

Female Connectors
for Panel Mounting,
CAGE CLAMP Termination 5 mm / 0.197 in. 378 – 379
®
7.5 mm / 0.295 in. 434 – 435

Female Connectors with Push-Buttons,
®
CAGE CLAMP S Termination 5/5.08 mm / 0.197/0.2 in. 380 – 384
7.5/7.62 mm / 0.295/0.3 in. 436 – 493

Female Connectors, 2-Conductor, 6
CAGE CLAMP S Termination 5/5.08 mm / 0.197/0.2 in. 386 – 388
®
7.5/7.62 mm / 0.295/0.3 in. 440 – 442

Male Headers with Solder Pins
5/5.08 mm / 0.197/0.2 in. 390 – 399
7.5/7.62 mm / 0.295/0.3 in. 444 – 449

Male Headers with Solder Pins
for Through-Hole Reflow Soldering 5 mm / 0.197 in. 400 – 404
7.5 mm / 0.295 in. 450 – 454

Male Connectors,
CAGE CLAMP Termination 5/5.08 mm / 0.197/0.2 in. 406 – 410
®
7.5/7.62 mm / 0.295/0.3 in. 456 – 459
Double-Pin Male Connectors 5/5.08 mm / 0.197/0.2 in. 412 – 413
7.5/7.62 mm / 0.295/0.3 in. 460 – 461
Female Connectors with Solder Pins 5/5.08 mm / 0.197/0.2 in. 414 – 420
7.5/7.62 mm / 0.295/0.3 in. 462 – 468

Male Connectors for Rail-Mounted Terminal Blocks 5 mm / 0.197 in. 422 – 423
Female Connectors for Rail-Mounted Terminal Blocks 5 mm / 0.197 in. 424 – 426

MCS MIDI Classic Accessories 470 – 480

Direct Marking 362 – 364
Accessories, General — Section 12 554 – 576
Application Examples 481 – 487
