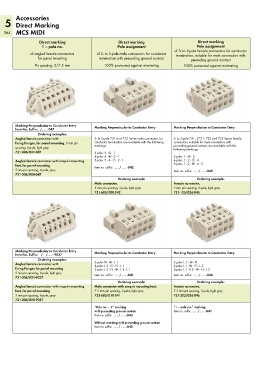

Page 366 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Accessories
5 Direct Marking
364 MCS MIDI

Direct marking Direct marking Direct marking
1 – pole no. Pole assignment Pole assignment
of 3- to 5-pole female connectors for conductor
of angled female connectors of 3- to 5-pole male connectors for conductor termination, suitable for male connectors with
for panel mounting termination with preceding ground contact preceding ground contact
Pin spacing: 5/7.5 mm 100% protected against mismating 100% protected against mismating

Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry
Item No. Suffix: /. . . - 047
Ordering examples:
Angled female connector with 3- to 5-pole 721 and 723 Series male connectors for 3- to 5-pole 721, 2721, 722 and 723 Series female
fixing flanges, for panel mounting, 5 mm pin conductor termination are available with the following connectors, suitable for male connectors with
spacing, 6-pole, light gray markings: preceding ground contact, are available with the
following markings:
721-306/031-047 3-pole: 3 - 3 - 1
4-pole: 4 - 3 - 2 - 1 3-pole: 1 - 3 - 3
Angled female connector with snap-in mounting 5-pole: 5 - 4 - 3 - 2 - 1 4-pole: 1 - 2 - 3 - 4
feet, for panel mounting Item no. suffix: . . . / . . . -042 5-pole: 1 - 2 - 3 - 4 - 5

5 mm pin spacing, 6-pole, gray Item no. suffix: . . . / . . . -045
721-306/008-047
Ordering example: Ordering example:
Male connector, Female connector,
5 mm pin spacing, 5-pole, light gray 5 mm pin spacing, 5-pole, light gray
721-605/000-042 721-105/026-045

Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry
Item No. Suffix: /. /. . . - 9037
Ordering examples:
Angled female connector with 3-pole: N - 3 - L 1 3-pole: L 1 - 3 - N
4-pole: L 1 - N - 3 - L 2
4-pole: L 2 - 3 - N - L 1
fixing flanges for panel mounting 5-pole: L 3 - N - 3 - L 2 - L 1 5-pole: L 1 - L 2 - 3 - N - L 3
5 mm pin spacing, 6-pole, light gray Item no. suffix: . . . / . . . -041 Item no. suffix: . . . / . . . -046
721-306/031-9037
Ordering example: Ordering example:
Angled female connector with snap-in mounting Male connector with snap-in mounting feet, Female connector,
feet, for panel mounting 7.5 mm pin spacing, 5-pole, light gray 7.5 mm pin spacing, 5-pole, light gray
5 mm pin spacing, 6-pole, gray 723-605/018-041 721-202/026-046
721-306/008-9037
“Pole no. – 1” marking “1 – pole no.” marking
with preceding ground contact Item no. suffix: . . . / . . . -047
Item no. suffix: . . . / . . . -043
Without marking with preceding ground contact
Item no. suffix: . . . / . . . -040
