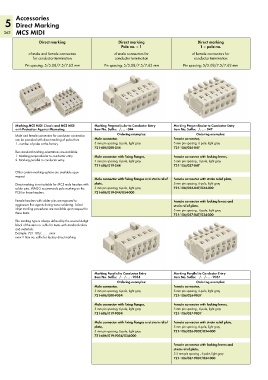

Page 364 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Accessories
5 Direct Marking
362 MCS MIDI

Direct marking Direct marking Direct marking
Pole no. – 1 1 – pole no.
of male and female connectors of male connectors for of female connectors for
for conductor termination conductor termination conductor termination
Pin spacing: 5/5.08/7.5/7.62 mm Pin spacing: 5/5.08/7.5/7.62 mm Pin spacing: 5/5.08/7.5/7.62 mm

Marking MCS MIDI Classic and MCS MIDI Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry
with Protection Against Mismating Item No. Suffix: /. . . - 044 Item No. Suffix: /. . . - 047
Male and female connectors for conductor connection Ordering examples: Ordering examples:
can be provided with direct marking of poles from Male connector, Female connector,
1 - number of poles at the factory. 5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray
721-606/000-044 721-106/026-047
Two standard marking orientations are available:
1. Marking perpendicular to conductor entry Male connector with fixing flanges, Female connector with locking levers,
2. Marking parallel to conductor entry 5 mm pin spacing, 6-pole, light gray 5 mm pin spacing , 6-pole, light gray
721-606/019-044 721-106/037-047

Other custom marking options are available upon
request.
Male connector with fixing flanges and strain relief Female connector with strain relief plate,
Direct marking is not suitable for MCS male headers with plate, 5 mm pin spacing, 6-pole, light gray
solder pins. WAGO recommends pole marking on the 5 mm pin spacing, 6-pole, light gray 721-106/026-047/034-000
PCB for these headers. 721-606/019-044/034-000
Female headers with solder pins are exposed to Female connector with locking levers and
aggressive flux agents during wave soldering. Select strain relief plate,
inkjet marking procedures are available upon request for 5 mm pin spacing , 6-pole, light gray
these items. 721-106/037-047/034-000
The marking type is always defined by the second 4-digit
block of the item no. suffix for items with standard colors
and materials.
Example: 721-106/. . . . - xxxx
xxxx = Item no. suffix for factory direct marking

Marking Parallel to Conductor Entry Marking Parallel to Conductor Entry
Item No. Suffix: /. /. . . - 9034 Item No. Suffix: /. /. . . - 9037
Ordering examples: Ordering examples:
Male connector, Female connector,
5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray
721-606/000-9034 721-106/026-9037

Male connector with fixing flanges, Female connector with locking levers,
5 mm pin spacing, 6-pole, light gray 5 mm pin spacing , 6-pole, light gray
721-606/019-9034 721-106/037-9037
Male connector with fixing flanges and strain relief Female connector with strain relief plate,
plate, 5 mm pin spacing, 6-pole, light gray
5 mm pin spacing, 6-pole, light gray 721-106/026-9037/034-000
721-606/019-9034/034-000

Female connector with locking levers and
strain relief plate,
3.5 mm pin spacing , 6-pole, light gray
721-106/037-9037/034-000
