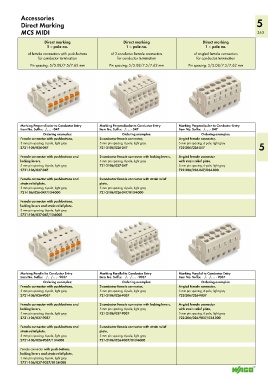

Page 365 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US
P. 365
Accessories
Direct Marking 5
MCS MIDI 363
Direct marking Direct marking Direct marking
1 – pole no. 1 – pole no. 1 – pole no.
of female connectors with push-buttons of 2-conductor female connectors of angled female connectors
for conductor termination for conductor termination for conductor termination
Pin spacing: 5/5.08/7.5/7.62 mm Pin spacing: 5/5.08/7.5/7.62 mm Pin spacing: 5/5.08/7.5/7.62 mm
Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry Marking Perpendicular to Conductor Entry
Item No. Suffix: /. . . - 047 Item No. Suffix: /. . . - 047 Item No. Suffix: /. . . - 047
Ordering examples: Ordering examples: Ordering examples:
Female connector with push-buttons, 2-conductor female connector, Angled female connector,
5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray
2721-106/026-047 721-2106/026-047 722-206/026-047 5
Female connector with push-buttons and 2-conductor female connector with locking levers, Angled female connector
locking levers, 5 mm pin spacing, 6-pole, light gray with strain relief plate,
5 mm pin spacing, 6-pole, light gray 721-2106/037-047 5 mm pin spacing, 6-pole, light gray
2721-106/037-047 722-206/026-047/034-000
Female connector with push-buttons and 2-conductor female connector with strain relief
strain relief plate, plate,
5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray
721-106/026-047/134-000 721-2106/026-047/0134-000
Female connector with push-buttons,
locking levers and strain relief plate,
5 mm pin spacing, 6-pole, light gray
2721-106/037-047/134-000
Marking Parallel to Conductor Entry Marking Parallel to Conductor Entry Marking Parallel to Conductor Entry
Item No. Suffix: /. /. . . - 9037 Item No. Suffix: /. /. . . - 9037 Item No. Suffix: /. /. . . - 9037
Ordering examples: Ordering examples: Ordering examples:
Female connector with push-buttons, 2-conductor female connector, Angled female connector,
5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray
2721-106/026-9037 721-2106/026-9037 722-206/026-9037
Female connector with push-buttons and 2-conductor female connector with locking levers, Angled female connector
locking levers, 5 mm pin spacing, 6-pole, light gray with strain relief plate,
5 mm pin spacing, 6-pole, light gray 721-2106/037-9037 5 mm pin spacing, 6-pole, light gray
2721-106/037-9037 722-206/026-9037/034-000
Female connector with push-buttons and 2-conductor female connector with strain relief
strain relief plate, plate,
5 mm pin spacing, 6-pole, light gray 5 mm pin spacing, 6-pole, light gray
2721-106/026-9037/134-000 721-2106/026-9037/0134-000
Female connector with push-buttons,
locking levers and strain relief plate,
5 mm pin spacing, 6-pole, light gray
2721-106/037-9037/0134-000
