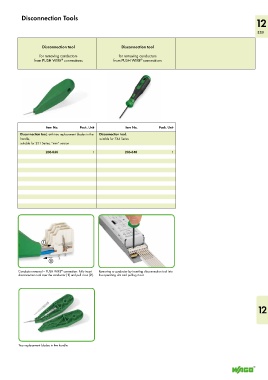

Page 561 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Disconnection Tools
12

559

Disconnection tool Disconnection tool

for removing conductors for removing conductors
from PUSH WIRE connections from PUSH WIRE connections
®
®

Item No. Pack. Unit Item No. Pack. Unit
Disconnection tool, with two replacement blades in the Disconnection tool,
handle, suitable for 744 Series
suitable for 251 Series, “mini” version
206-830 1 206-840 1

1
_>

2 _>
Conductor removal — PUSH WIRE connection: Fully insert Removing a conductor by inserting disconnection tool into
®
disconnection tool over the conductor (1) and pull it out (2). the operating slot and pulling it out.

12

Two replacement blades in the handle.
