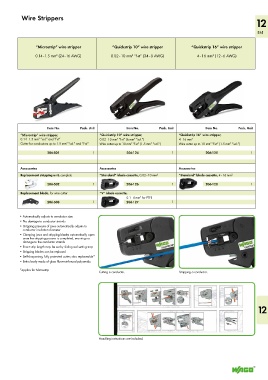

Wire Strippers
12

561

“Microstrip” wire stripper “Quickstrip 10” wire stripper “Quickstrip 16” wire stripper

0.14–1.5 mm (24–16 AWG) 0.02–10 mm “f-st” (34–8 AWG) 4–16 mm (12–6 AWG)
2
2
2

Item No. Pack. Unit Item No. Pack. Unit Item No. Pack. Unit
“Microstrip” wire stripper, “Quickstrip 10” wire stripper, “Quickstrip 16” wire stripper,
0.14–1.5 mm “sol.” and “f-st” 0.02–10 mm “f-st” (6 mm “sol.”) 4–16 mm 2
2
2
2
Cutter for conductors up to 1.5 mm “sol.” and “f-st” Wire cutter up to 10 mm “f-st” (1.5 mm “sol.”) Wire cutter up to 10 mm “f-st” (1.5 mm “sol.”)
2
2
2
2
2
206-501 1 206-124 1 206-125 1
Accessories Accessories Accessories
Replacement stripping unit, complete “Standard” blade cassette, 0.02–10 mm 2 “Standard” blade cassette, 4–16 mm 2
206-502 1 206-126 1 206-128 1
Replacement blade, for wire cutter “V” blade cassette,
2
0.1–4 mm for PTFE
206-503 1 206-127 1

• Automatically adjusts to conductor size
• No damage to conductor strands
• Gripping pressure of jaws automatically adjusts to
conductor insulation diameter
• Clamping jaws and stripping blades automatically open
once the stripping process is completed, ensuring no
damage to the conductor strands
• Exact strip length may be set by sliding red setting stop
• Stripping blades can be replaced
• Self-sharpening, fully protected cutter; also replaceable*
• Entire body made of glass fiber-reinforced polyamide
*applies for Microstrip
Cutting a conductor. Stripping a conductor.

12

Handling instructions are included.
