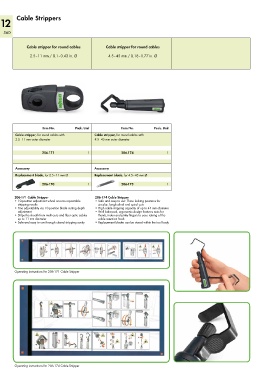

Page 562 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

12 Cable Strippers

560

Cable stripper for round cables Cable stripper for round cables

2.5–11 mm / 0.1–0.43 in. Ø 4.5–45 mm / 0.18–1.77 in. Ø

Item No. Pack. Unit Item No. Pack. Unit
Cable stripper, for round cables with Cable stripper, for round cables with
2.5–11 mm outer diameter 4.5–45 mm outer diameter

206-171 1 206-174 1

Accessory Accessory
Replacement blade, for 2.5–11 mm Ø Replacement blade, for 4.5–45 mm Ø
206-170 1 206-173 1

206-171 Cable Stripper 206-174 Cable Stripper
• 10-position adjustment wheel ensures repeatable • Safe and easy to use: Three locking positions for
stripping results circular, longitudinal and spiral cuts
• Fine adjustability via 10-position blade cutting depth • High cable stripping capacity of up to 45 mm diameter
adjustment • Well balanced, ergonomic design features rests for
• Strips the sheath from multi-core and fiber optic cables thumb, index and pinky fingers to ease raising of the
up to 11 mm diameter cable retention hook
• Safe and easy to use through closed stripping cavity • Replacement blades can be stored within the tool body

Operating instructions for 206-171 Cable Stripper

Operating instructions for 206-174 Cable Stripper
