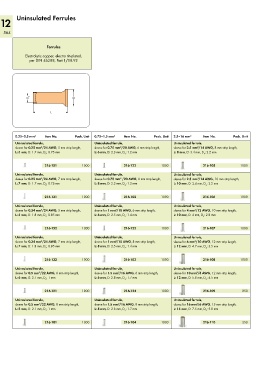

Page 566 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

12 Uninsulated Ferrules

564

Ferrules

Electrolytic copper, electro tin-plated,
per DIN 46288, Part 1/08.92

< D 2 > <___D___>

<__________ L __________>

0.25–0.5 mm 2 Item No. Pack. Unit 0.75–1.5 mm 2 Item No. Pack. Unit 2.5–16 mm 2 Item No. Pack. Unit
Uninsulated ferrule, Uninsulated ferrule, Uninsulated ferrule,
2
2
sleeve for 0.25 mm /24 AWG, 5 mm strip length, sleeve for 0.75 mm /20 AWG, 6 mm strip length, sleeve for 2.5 mm /14 AWG, 8 mm strip length,
2
L: 5 mm, D: 1.7 mm, D : 0.75 mm L: 6 mm, D: 2.3 mm, D : 1.2 mm L: 8 mm, D: 3.4 mm, D : 2.2 mm
2 2 2

216-151 1000 216-122 1000 216-105 1000
Uninsulated ferrule, Uninsulated ferrule, Uninsulated ferrule,
sleeve for 0.25 mm /24 AWG, 7 mm strip length, sleeve for 0.75 mm /20 AWG, 8 mm strip length, sleeve for 2.5 mm /14 AWG, 10 mm strip length,
2
2
2
L: 7 mm, D: 1.7 mm, D : 0.75 mm L: 8 mm, D: 2.3 mm, D : 1.2 mm L: 10 mm, D: 3.4 mm, D : 2.2 mm
2
2
2
216-131 1000 216-102 1000 216-106 1000
Uninsulated ferrule, Uninsulated ferrule, Uninsulated ferrule,
sleeve for 0.34 mm /24 AWG, 5 mm strip length, sleeve for 1 mm /18 AWG, 6 mm strip length, sleeve for 4 mm /12 AWG, 10 mm strip length,
2
2
2
L: 5 mm, D: 1.8 mm, D : 0.85 mm L: 6 mm, D: 2.5 mm, D : 1.4 mm L: 10 mm, D: 4 mm, D : 2.8 mm
2 2 2
216-152 1000 216-123 1000 216-107 1000
Uninsulated ferrule, Uninsulated ferrule, Uninsulated ferrule,
sleeve for 0.34 mm /24 AWG, 7 mm strip length, sleeve for 1 mm /18 AWG, 8 mm strip length, sleeve for 6 mm /10 AWG, 12 mm strip length,
2
2
2
L: 7 mm, D: 1.8 mm, D : 0.85 mm L: 8 mm, D: 2.5 mm, D : 1.4 mm L: 12 mm, D: 4.7 mm, D : 3.5 mm
2
2
2
216-132 1000 216-103 1000 216-108 1000
Uninsulated ferrule, Uninsulated ferrule, Uninsulated ferrule,
2
sleeve for 0.5 mm /22 AWG, 6 mm strip length, sleeve for 1.5 mm /16 AWG, 6 mm strip length, sleeve for 10 mm /8 AWG, 12 mm strip length,
2
2
L: 6 mm, D: 2.1 mm, D : 1 mm L: 6 mm, D: 2.8 mm, D : 1.7 mm L: 12 mm, D: 5.8 mm, D : 4.5 mm
2 2 2
216-121 1000 216-124 1000 216-109 250
Uninsulated ferrule, Uninsulated ferrule, Uninsulated ferrule,
sleeve for 0.5 mm /22 AWG, 8 mm strip length, sleeve for 1.5 mm /16 AWG, 8 mm strip length, sleeve for 16 mm /6 AWG, 15 mm strip length,
2
2
2
L: 8 mm, D: 2.1 mm, D : 1 mm L: 8 mm, D: 2.8 mm, D : 1.7 mm L: 15 mm, D: 7.5 mm, D : 5.8 mm
2
2
2
216-101 1000 216-104 1000 216-110 250
