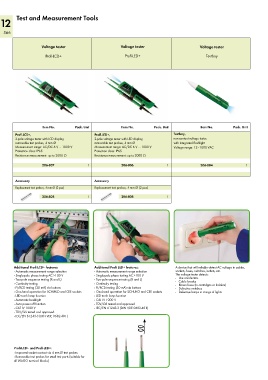

Page 568 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

12 Test and Measurement Tools

566

Voltage tester Voltage tester Voltage tester

Profi-LCD+ Profi-LED+ Testboy

Item No. Pack. Unit Item No. Pack. Unit Item No. Pack. Unit

Profi-LCD+, Profi-LED+, Testboy,
2-pole voltage tester with LCD display, 2-pole voltage tester with LED display, non-contact voltage tester,
removable test probes, 4 mm Ø removable test probes, 4 mm Ø with integrated flashlight
Measurement range: AC/DC 6 V ... 1000 V Measurement range: AC/DC 6 V ... 1000 V Voltage range: 12–1000 VAC
Protection class: IP65 Protection class: IP65
Resistance measurement: up to 2000 Ω Resistance measurement: up to 2000 Ω

206-807 1 206-806 1 206-804 1

Accessory Accessory
Replacement test probes, 4 mm Ø (2 pcs) Replacement test probes, 4 mm Ø (2 pcs)

206-808 1 206-808 1

Additional Profi LCD+ features: Additional Profi LED+ features: A device that will reliably detect AC voltage in cables,
· Automatic measurement range selection · Automatic measurement range selection sockets, fuses, switches, outlets, etc.
· Single-pole phase testing AC >100 V · Single-pole phase testing AC >100 V The voltage tester detects:
· Two-pole sequence testing (R and L) · Two-pole sequence testing (R and L) · Live conductors
· Cable breaks
· Continuity testing · Continuity testing · Blown fuses (in cartridges or holders)
· FI/RCD testing (30 mA) via buttons · FI/RCD testing (30 mA) via buttons · Defective switches
· One-hand operation for SCHUKO and CEE sockets · One-hand operation for SCHUKO and CEE sockets · Defective lamps in strings of lights
· LED torch lamp function · LED torch lamp function
· Automatic backlight · CAT IV 1000 V
· Auto power-off function · TÜV/GS tested and approved
· CAT IV 1000 V · IEC/EN 61243-3 (DIN VDE 0682-401)
· TÜV/GS tested and approved
· IEC/EN 61243-3 (DIN VDE 0682-401)

Profi-LCD+ and Profi-LED+:
· Improved socket contact via 4 mm Ø test probes
· Removable test probes for small test ports (suitable for
all WAGO terminal blocks)
