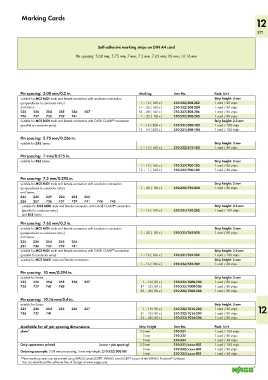

Page 573 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Marking Cards
12

571

Self-adhesive marking strips on DIN A4 card

Pin spacing: 5.08 mm, 5.75 mm, 7 mm, 7.5 mm, 7.62 mm, 10 mm, 10.16 mm

Pin spacing: 5.08 mm/0.2 in. Marking Item No. Pack. Unit
suitable for MCS MIDI male and female connectors with conductor connection Strip height: 3 mm
(perpendicular to conductor entry) 1 – 16 ( 160 x ) 210-332/508-202 1 card / 80 strips
and Series: . . . 17 – 32 ( 160 x ) 210-332/508-204 1 card / 80 strips
235 236 254 255 256 257 33 – 48 ( 160 x ) 210-332/508-206 1 card / 80 strips
736 737 738 739 741 1 – 32 ( 80 x ) 210-332/508-205 1 card / 80 strips
suitable for MCS MIDI male and female connectors with CAGE CLAMP connection Strip height: 2.3 mm
®
(parallel to conductor entry) 1 – 12 ( 200 x ) 210-331/508-103 1 card / 100 strips
13 – 24 ( 200 x ) 210-331/508-104 1 card / 100 strips
Pin spacing: 5.75 mm/0.226 in.
suitable for 243 Series Strip height: 3 mm
1 – 12 ( 160 x ) 210-332/575-103 1 card / 80 strips
Pin spacing: 7 mm/0.275 in.
suitable for 826 Series Strip height: 3 mm
1 – 12 ( 160 x ) 210-332/700-103 1 card / 80 strips
12 – 1 ( 160 x ) 210-332/700-102 1 card / 80 strips

Pin spacing: 7.5 mm/0.295 in.
suitable for MCS MIDI male and female connectors with conductor connection Strip height: 3 mm
(perpendicular to conductor entry) 1 – 20 ( 80 x ) 210-332/750-020 1 card / 80 strips
and Series: . . .
235 236 239 250 254 255
256 257 736 737 739 741 746 745
suitable for MCS MIDI male and female connectors with CAGE CLAMP connection Strip height: 2.3 mm
®
(parallel to conductor entry) 1 – 16 ( 100 x ) 210-331/750-202 1 card / 100 strips
and 804 Series
Pin spacing: 7.62 mm/0.3 in.
suitable for MCS MIDI male and female connectors with conductor connection Strip height: 3 mm
(perpendicular to conductor entry) 1 – 20 ( 80 x ) 210-332/762-020 1 card / 80 strips
and Series: . . .
235 236 254 255 256
257 736 737 739 741
suitable for MCS MIDI male and female connectors with CAGE CLAMP connection Strip height: 2.3 mm
®
(parallel to conductor entry) 1 – 16 ( 100 x ) 210-331/762-202 1 card / 100 strips
suitable for MCS MAXI male and female connectors Strip height: 5 mm
1 – 16 ( 100 x ) 210-334/762-202 1 card / 48 strips
Pin spacing: 10 mm/0.394 in.
suitable for Series: . . Strip height: 3 mm
235 236 254 255 256 257 1 – 16 ( 80 x ) 210-332/1000-202 1 card / 80 strips
736 737 741 745 17 – 32 ( 80 x ) 210-332/1000-204 1 card / 80 strips
33 – 48 ( 80 x ) 210-332/1000-206 1 card / 80 strips
Pin spacing: 10.16 mm/0.4 in.
suitable for Series: . . Strip height: 3 mm
235 236 254 255 256 257 1 – 16 ( 80 x ) 210-332/1016-202 1 card / 80 strips 12
736 737 741 17 – 32 ( 80 x ) 210-332/1016-204 1 card / 80 strips
33 – 48 ( 80 x ) 210-332/1016-206 1 card / 80 strips

Available for all pin spacing dimensions: Strip Height Item No. Pack. Unit
plain* 2.3 mm 210-331 1 card / 100 strips
3 mm 210-332 1 card / 80 strips
5 mm 210-334 1 card / 48 strips
Only separators printed (xxxx = pin spacing) 2.3 mm 210-331/xxxx-001 1 card / 100 strips
3 mm 210-332/xxxx-001 1 card / 80 strips
Ordering example: 5.08 mm pin spacing, 3 mm strip height: 210-332/508-001
5 mm 210-334/xxxx-001 1 card / 48 strips
*Plain marking cards can be printed using WAGO smartSCRIPT. WAGO smartSCRIPT is part of the WAGO ProServe Software.
®
You can download this software free of charge at www.wago.com.
