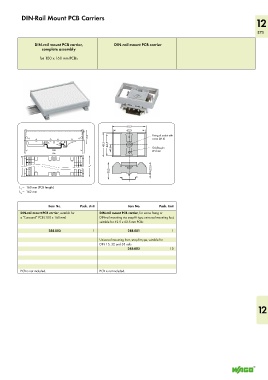

DIN-Rail Mount PCB Carriers
12

575

DIN-rail mount PCB carrier, DIN-rail mount PCB carrier
complete assembly

for 100 x 160 mm PCBs

<_________ 65,5 _________>
<__________ 62,5 __________>
<___ 25,2 ___> Fixing of socket with
screw (M 4)

Ø 4 mm
<__________________________100 __________________________> <____ 45,5 ____ > <_ ___ 42,5 ____ > (_15_) Guiding pin
<____________________________ 106 ____________________________>
<_______ L 1 ________> <_______ L 2 _______> <_ __ 38,5 ___> 23,5 > >3<

L = 160 mm (PCB length)
1
L = 162 mm
2
Item No. Pack. Unit Item No. Pack. Unit
DIN-rail mount PCB carrier, suitable for DIN-rail mount PCB carrier, for screw fixing or
a “Eurocard” PCB (100 x 160 mm) DIN-rail mounting via snap-fit type universal mounting feet,
suitable for 42.5 x 62.5 mm PCBs
288-003 1 288-001 1

Universal mounting foot, snap-fit type, suitable for
DIN 15, 32 and 35 rails
288-002 10

PCB is not included. PCB is not included.
