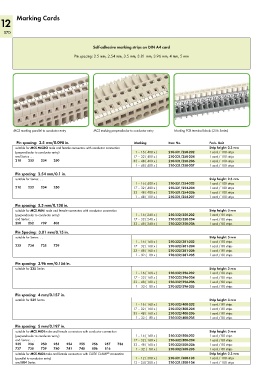

Page 572 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

12 Marking Cards

570

Self-adhesive marking strips on DIN A4 card

Pin spacing: 2.5 mm, 2.54 mm, 3.5 mm, 3.81 mm, 3.96 mm, 4 mm, 5 mm

MCS marking parallel to conductor entry MCS marking perpendicular to conductor entry Marking PCB terminal blocks (256 Series)

Pin spacing: 2.5 mm/0.098 in. Marking Item No. Pack. Unit
suitable for MCS MICRO male and female connectors with conductor connection Strip height: 2.3 mm
(perpendicular to conductor entry) 1 – 16 ( 400 x ) 210-331/250-202 1 card / 100 strips
and Series . . . 17 – 32 ( 400 x ) 210-331/250-204 1 card / 100 strips
218 233 234 250 33 – 48 ( 400 x ) 210-331/250-206 1 card / 100 strips
1 – 48 ( 400 x ) 210-331/250-207 1 card / 100 strips
Pin spacing: 2.54 mm/0.1 in.
suitable for Series: . . Strip height: 2.3 mm
1 – 16 ( 400 x ) 210-331/254-202 1 card / 100 strips
218 233 234 250 17 – 32 ( 400 x ) 210-331/254-204 1 card / 100 strips
33 – 48 ( 400 x ) 210-331/254-206 1 card / 100 strips
1 – 48 ( 100 x ) 210-331/254-207 1 card / 100 strips
Pin spacing: 3.5 mm/0.138 in.
suitable for MCS MINI male and female connectors with conductor connection Strip height: 3 mm
(perpendicular to conductor entry) 1 – 16 ( 240 x ) 210-332/350-202 1 card / 80 strips
and Series: . . . 17 – 32 ( 240 x ) 210-332/350-204 1 card / 80 strips
250 252 739 805 33 – 48 ( 240 x ) 210-332/350-206 1 card / 80 strips

Pin Spacing: 3.81 mm/0.15 in.
suitable for Series: . . Strip height: 3 mm
1 – 16 ( 160 x ) 210-332/381-202 1 card / 80 strips
235 734 735 739 17 – 32 ( 160 x ) 210-332/381-204 1 card / 80 strips
33 – 48 ( 160 x ) 210-332/381-206 1 card / 80 strips
1 – 32 ( 80 x ) 210-332/381-205 1 card / 80 strips
Pin spacing: 3.96 mm/0.156 in.
suitable for 235 Series Strip height: 3 mm
1 – 16 ( 160 x ) 210-332/396-202 1 card / 80 strips
17 – 32 ( 160 x ) 210-332/396-204 1 card / 80 strips
33 – 48 ( 160 x ) 210-332/396-206 1 card / 80 strips
1 – 32 ( 80 x ) 210-332/396-205 1 card / 80 strips
Pin spacing: 4 mm/0.157 in.
suitable for 235 Series Strip height: 3 mm
1 – 16 ( 160 x ) 210-332/400-202 1 card / 80 strips
17 – 32 ( 160 x ) 210-332/400-204 1 card / 80 strips
33 – 48 ( 160 x ) 210-332/400-206 1 card / 80 strips
1 – 32 ( 80 x ) 210-332/400-205 1 card / 80 strips

Pin spacing: 5 mm/0.197 in.
suitable for MCS MIDI male and female connectors with conductor connection Strip height: 3 mm
(perpendicular to conductor entry) 1 – 16 ( 160 x ) 210-332/500-202 1 card / 80 strips
and Series: . . . 17 – 32 ( 160 x ) 210-332/500-204 1 card / 80 strips
235 236 250 253 254 255 256 257 736 33 – 48 ( 160 x ) 210-332/500-206 1 card / 80 strips
737 738 739 740 741 745 806 816 1 – 32 ( 80 x ) 210-332/500-205 1 card / 80 strips
®
suitable for MCS MIDI male and female connectors with CAGE CLAMP connection Strip height: 2.3 mm
(parallel to conductor entry) 1 – 12 ( 300 x ) 210-331/500-103 1 card / 100 strips
and 804 Series 13 – 24 ( 300 x ) 210-331/500-104 1 card / 100 strips
