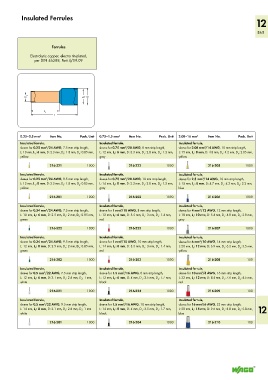

Page 567 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

Insulated Ferrules
12

565

Ferrules

Electrolytic copper, electro tin-plated,
per DIN 46288, Part 4/09.09

< D 2 > <__ D 1 ___> <____ D ____>

<_______ L ________>
1
<_______________ L ______________>

0.25–0.5 mm 2 Item No. Pack. Unit 0.75–1.5 mm 2 Item No. Pack. Unit 2.08–16 mm 2 Item No. Pack. Unit
Insulated ferrule, Insulated ferrule, Insulated ferrule,
2
sleeve for 0.25 mm /24 AWG, 7.5 mm strip length, sleeve for 0.75 mm /20 AWG, 8 mm strip length, sleeve for 2.08 mm /14 AWG, 10 mm strip length,
2
2
L: 10 mm, L : 6 mm, D: 2.3 mm, D : 1.8 mm, D : 0.85 mm, L: 12 mm, L : 6 mm, D: 3.3 mm, D : 2.8 mm, D : 1.2 mm, L: 15 mm, L : 8 mm, D: 4.8 mm, D : 4.2 mm, D : 2.05 mm,
1
1
1
1
2
2
2
1
1
yellow gray yellow
216-321 1000 216-222 1000 216-205 1000
Insulated ferrule, Insulated ferrule, Insulated ferrule,
sleeve for 0.25 mm /24 AWG, 9.5 mm strip length, sleeve for 0.75 mm /20 AWG, 10 mm strip length, sleeve for 2.5 mm /14 AWG, 10 mm strip length,
2
2
2
L: 12 mm, L : 8 mm, D: 2.3 mm, D : 1.8 mm, D : 0.85 mm, L: 14 mm, L : 8 mm, D: 3.3 mm, D : 2.8 mm, D : 1.2 mm, L: 15 mm, L : 8 mm, D: 4.7 mm, D : 4.2 mm, D : 2.2 mm,
2
1
1
2
1
1
2
1
1
yellow gray blue
216-301 1000 216-202 1000 216-206 1000
Insulated ferrule, Insulated ferrule, Insulated ferrule,
2
2
sleeve for 0.34 mm /24 AWG, 7.5 mm strip length, sleeve for 1 mm /18 AWG, 8 mm strip length, sleeve for 4 mm /12 AWG, 12 mm strip length,
2
L: 10 mm, L : 6 mm, D: 2.5 mm, D : 2 mm, D : 0.85 mm, L: 12 mm, L : 6 mm, D: 3.5 mm, D : 3 mm, D : 1.4 mm, L: 18 mm, L : 10 mm, D: 5.4 mm, D : 4.8 mm, D : 2.8 mm,
2
1
1
1
1
2
1
1
2
green red gray
216-322 1000 216-223 1000 216-207 1000
Insulated ferrule, Insulated ferrule, Insulated ferrule,
sleeve for 0.34 mm /24 AWG, 9.5 mm strip length, sleeve for 1 mm /18 AWG, 10 mm strip length, sleeve for 6 mm /10 AWG, 14 mm strip length,
2
2
2
L: 12 mm, L : 8 mm, D: 2.5 mm, D : 2 mm, D : 0.85 mm, L: 14 mm, L : 8 mm, D: 3.5 mm, D : 3 mm, D : 1.4 mm, L: 20 mm, L : 12 mm, D: 6.9 mm, D : 6.3 mm, D : 3.5 mm,
1
2
1
2
1
1
1
2
1
green red yellow
216-302 1000 216-203 1000 216-208 100
Insulated ferrule, Insulated ferrule, Insulated ferrule,
2
2
sleeve for 0.5 mm /22 AWG, 7.5 mm strip length, sleeve for 1.5 mm /16 AWG, 8 mm strip length, sleeve for 10 mm /8 AWG, 16 mm strip length,
2
L: 12 mm, L : 6 mm, D: 3.1 mm, D : 2.6 mm, D : 1 mm, L: 12 mm, L : 6 mm, D: 4 mm, D : 3.5 mm, D : 1.7 mm, L: 22 mm, L : 12 mm, D: 8.4 mm, D : 7.6 mm, D : 4.5 mm,
2
1
2
1
1
2
1
1
1
white black red
216-221 1000 216-224 1000 216-209 100
Insulated ferrule, Insulated ferrule, Insulated ferrule,
sleeve for 0.5 mm /22 AWG, 9.5 mm strip length, sleeve for 1.5 mm /16 AWG, 10 mm strip length, sleeve for 16 mm /6 AWG, 23 mm strip length,
2
2
2
L: 14 mm, L : 8 mm, D: 3.1 mm, D : 2.6 mm, D : 1 mm L: 14 mm, L : 8 mm, D: 4 mm, D : 3.5 mm, D : 1.7 mm, L: 28 mm, L : 18 mm, D: 9.6 mm, D : 8.8 mm, D : 5.8 mm, 12
1
1
2
1
2
1
1
1
2
white black blue
216-201 1000 216-204 1000 216-210 100
