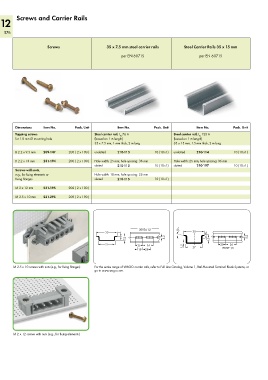

Page 578 - Wago_PCB_TerminalBlocksConnectors_Volume2_2015_US

12 Screws and Carrier Rails

576

Screws 35 x 7.5 mm steel carrier rails Steel Carrier Rails 35 x 15 mm

per EN 60715 per EN 60715

Dimensions Item No. Pack. Unit Item No. Pack. Unit Item No. Pack. Unit
Tapping screws Steel carrier rail, I 76 A Steel carrier rail, I 125 A
N
N
for 1.8 mm Ø mounting hole (based on 1 m length) (based on 1 m length)
35 x 7.5 mm, 1 mm thick, 2 m long 35 x 15 mm, 1.5 mm thick, 2 m long
B 2.2 x 9.5 mm 209-147 200 ( 2 x 100 ) unslotted 210-113 10 (10x1) unslotted 210-114 10 (10x1)
B 2.2 x 13 mm 231-194 200 ( 2 x 100 ) Hole width: 25 mm; hole spacing: 36 mm Hole width: 25 mm; hole spacing: 36 mm
slotted 210-112 10 (10x1) slotted 210-197 10 (10x1)
Screws with nuts,
e.g., for fixing elements or Hole width: 18 mm; hole spacing: 25 mm
fixing flanges slotted 210-115 10 (10x1)
M 2 x 12 mm 231-195 200 ( 2 x 100 )

M 2.5 x 10 mm 231-295 200 ( 2 x 100 )

2000±1,5 15°
<____ 35 ____> 1
> <_ > 7,5 < > < 5,2 <____ 35 ____> > <_ 1 (_15_) > < 5,2
<___ 27 ___> ( 25 ) < 36> > <_1,5 (_25_) <_ 36 _>

18 25 <___ 27 ___> 2000± 1,5

M 2.5 x 10 screws with nuts (e.g., for fixing flanges) For the entire range of WAGO carrier rails, refer to Full Line Catalog, Volume 1, Rail-Mounted Terminal Block Systems, or
go to www.wago.com.

M 2 x 12 screws with nuts (e.g., for fixing elements)
