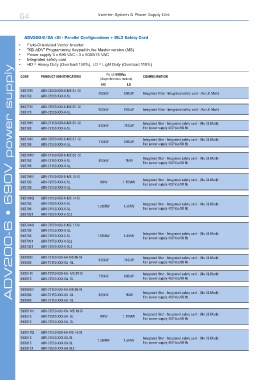

64 Inverter System & Power Supply Unit

ADV200-6/6A +SI - Parallel Configurations + SIL3 Safety Card
• Field-Orientated Vector Inverter
• "KB-ADV" Programming Keypad in the Master version (MS)
• Power supply 3 x 690 VAC - 3 x 500/575 VAC
• Integrated safety card
• HD = Heavy Duty (Overload 150%), LD = Light Duty (Overload 110%)
ADV200-6 • 690V power supply
ADV200 - 4 • Basic
Pn @ 690Vac
CODE PRODUCT IDENTIFICATION CONFIGURATION
(Asynchronous motors)
HD LD
S9O76M ADV-72000-KXX-6-MS 04 -SI 400kW 500kW Integrated Filter - Integrated safety card - (No UL Mark)
S9O76S ADV-72000-XXX-6-SL

S9O77M ADV-72500-KXX-6-MS 05 -SI
500kW 630kW Integrated Filter - Integrated safety card - (No UL Mark)
S9O77S ADV-72500-XXX-6-SL
S9O78M ADV-73150-KXX-6-MS 06 -SI 630kW 710kW Integrated filter - Integrated safety card - (No UL Mark)
S9O78S ADV-73150-XXX-6-SL Fan power supply 400 Vac/50 Hz

S9O79M ADV-73550-KXX-6-MS 07 -SI 710kW 800kW Integrated filter - Integrated safety card - (No UL Mark)
S9O79S ADV-73550-XXX-6-SL Fan power supply 400 Vac/50 Hz

S9O78M1 ADV-73150-KXX-6-MS 09 -SI
S9O78S ADV-73150-XXX-6-SL 900kW 1MW Integrated filter - Integrated safety card - (No UL Mark)
Fan power supply 400 Vac/50 Hz
S9O78S ADV-73150-XXX-6-SL
S9O79M1 ADV-73550-KXX-6-MS 10-SI
S9O79S ADV-73550-XXX-6-SL 1MW 1.15MW Integrated filter - Integrated safety card - (No UL Mark)
Fan power supply 400 Vac/50 Hz
S9O79S ADV-73550-XXX-6-SL
S9O79M2 ADV-73550-KXX-6-MS 14-SI
S9O79S ADV-73550-XXX-6-SL 1.35MW 1.5MW Integrated filter - Integrated safety card - (No UL Mark)
S9O79S ADV-73550-XXX-6-SL Fan power supply 400 Vac/50 Hz
S9O79S1 ADV-73550-XXX-6-SL2

S9O79M3 ADV-73550-KXX-6-MS 17-SI
S9O79S ADV-73550-XXX-6-SL
S9O79S ADV-73550-XXX-6-SL 1.65MW 1.8MW Integrated filter - Integrated safety card - (No UL Mark)
Fan power supply 400 Vac/50 Hz
S9O79S1 ADV-73550-XXX-6-SL2
S9O79S1 ADV-73550-XXX-6-SL2

S9O80M ADV-73150-KXX-6A-MS 06-SI 630kW 710kW Integrated filter - Integrated safety card - (No UL Mark)
S9O80S ADV-73150-XXX-6A -SL Fan power supply 460 Vac/60 Hz

S9O81M ADV-73550-KXX-6A- MS 07-SI Integrated filter - Integrated safety card - (No UL Mark)
710kW 800kW
S9O81S ADV-73550-XXX-6A- SL Fan power supply 460 Vac/60 Hz

S9O80M1 ADV-73150-KXX-6A-MS 09-SI
S9O80S ADV-73150-XXX-6A -SL 900kW 1MW Integrated filter - Integrated safety card - (No UL Mark)
Fan power supply 460 Vac/60 Hz
S9O80S ADV-73150-XXX-6A -SL

S9O81M1 ADV-73550-KXX-6A- MS 10-SI
S9O81S ADV-73550-XXX-6A- SL 1MW 1.15MW Integrated filter - Integrated safety card - (No UL Mark)
Fan power supply 460 Vac/60 Hz
S9O81S ADV-73550-XXX-6A- SL
S9O81M2 ADV-73550-KXX-6A-MS 14-SI
S9O81S ADV-73550-XXX-6A-SL 1.35MW 1.5MW Integrated filter - Integrated safety card - (No UL Mark)
S9O81S ADV-73550-XXX-6A-SL Fan power supply 460 Vac/60 Hz
S9O81S1 ADV-73550-XXX-6A-SL2
