Gefran Spa - Drive & Motion Control Unit • www.gefran.com 69

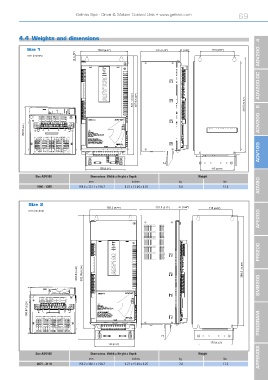

4.4 Weights and dimensions

Size 1 159.2 (6.27”) 131.5 (5.18”) 27 (1.06”) 115 (4.53”)
mm (inches) ADV200 - 4
mm (inches) 13.1 (.52”)

ADV200-DC

331.1 (13.04”) 367.6 (14.47”) 318.5 (12.54”)

ADV100 ADV200 - 6
158.67 (6.25”) Run

ADV100

135 (5.31”) 115 (4.53”)
Size ADV100 Dimensions: Width x Height x Depth Weight
ADV80
mm inches kg lbs
1040 - 1055 159.2 x 331.1 x 158.7 6.27 x 13.04 x 6.25 5.8 12.8

Size 2
159.2 (6.27”) 131.2 (5.17”) 27 (1.06”) 115 (4.53”)
mm (inches)
AFE200
mm (inches)

FFE200

418.8 (16.49”) 382.05 (15.04”) 369.5 (14.55”)
SMB200

ADV100
158.67 (6.25”) Run

PROGRAM.

115 (4.53”)
135 (5.31”)
APPENDIX
Size ADV100 Dimensions: Width x Height x Depth Weight
mm inches kg lbs
2075 - 2110 159.2 x 382.1 x 158.7 6.27 x 15.04 x 6.25 7.8 17.2
