Catalog PDN1000-3US Actuator Products – Rodless Cylinders

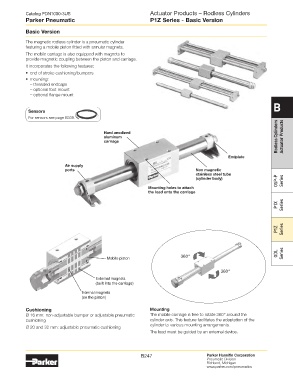

Parker Pneumatic P1Z Series - Basic Version

Basic Version

The magnetic rodless cylinder is a pneumatic cylinder
featuring a mobile piston fitted with annular magnets.
The mobile carriage is also equipped with magnets to
provide magnetic coupling between the piston and carriage.
It incorporates the following features:
• end of stroke cushioning/bumpers
• mounting:
– threaded endcaps
– optional foot mount
– optional flange mount
B
Sensors
For sensors see page B339.
Rodless Cylinders

Hard anodized
aluminum Actuator Products
carriage

endplate
air supply
ports Non magnetic
stainless steel tube
(cylinder body) OSP-P Series
Mounting holes to attach
the load onto the carriage

P1X Series

P1Z Series

GDL Series
Mobile piston 360°

360°
External magnets
(built into the carriage)

Internal magnets
(on the piston)

Cushioning Mounting
Ø 16 mm: non-adjustable bumper or adjustable pneumatic The mobile carriage is free to rotate 360° around the
cushioning cylinder axis. This feature facilitates the adaptation of the
Ø 20 and 32 mm: adjustable pneumatic cushioning cylinder to various mounting arrangements.
The load must be guided by an external device.
