Catalog PDN1000-3US Automation Products – Slide Tables
Parker Pneumatic P5SS Slide Tables

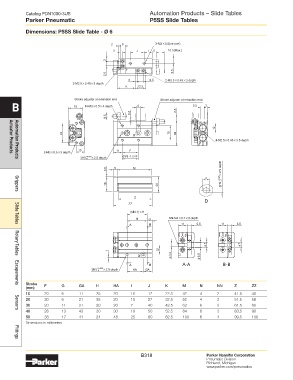

Dimensions: P5SS Slide Table - Ø 6

B

Actuator Products
Automation Products

Grippers

Slide Tables

Rotary Tables

Stroke F G GA H HA I J K M N NN Z ZZ
Escapements
(mm)
10 20 6 11 25 20 10 17 22.5 42 4 2 41.5 48
20 30 6 21 35 20 10 27 32.5 52 4 2 51.5 58
30 20 11 31 20 20 7 40 42.5 62 6 3 61.5 68
40 28 13 43 30 30 19 50 52.5 84 6 3 83.5 90
Sensors
50 38 17 41 24 48 25 60 62.5 100 6 4 99.5 106
Dimensions in millimeters
